Cooling system pipe for BMW 5 Series E39 535i (1997)

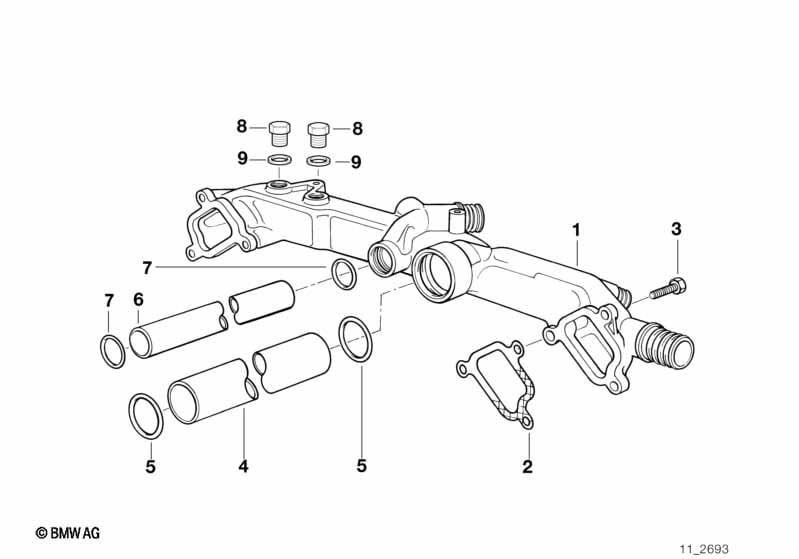

This Cooling system pipe technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1997.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cooling system accumulator | 1 | 09/1998 | 11531702201 | $115.70 | +core | Shop at ECS Tuning | |||
| 02 | Gasket Asbestos Free | 2 | 11531731833 | $6.02 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M6X30-ZNNIV SI | 6 | 07119906123 | $0.81 | Shop at ECS Tuning | ||||
| 04 | Pipe | 1 | 11531741202 | $59.75 | Shop at ECS Tuning | |||||
| 05 | O-ring | 34,2X4,0MM | 2 | 11531710048 | $2.69 | Shop at ECS Tuning | ||||
| 06 | Pipe | 1 | 11531736831 | $30.08 | Shop at ECS Tuning | |||||
| 07 | O-ring | 19,5X3,0MM | 2 | 11531710055 | $1.25 | Shop at ECS Tuning | ||||
| 08 | Screw plug | M14X1,5-ZNNIV | 2 | 07119904539 | $2.56 | Shop at ECS Tuning | ||||
| 09 | Gasket ring | A14X18-AL | 2 | 07119963200 | $0.38 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 535i Cooling system pipe?
- This technical diagram illustrates the Cooling system pipe within the Engine group for the 5 Series E39 535i produced during 1997. It provides a detailed exploded view of the components, identifying key parts such as the Cooling system accumulator (Part #11531702201).
- Which models use the hardware listed in this Cooling system pipe?
- The hardware and components featured in the Cooling system pipe are specific to the 5 Series E39 535i produced during 1997. These technical specifications ensure that parts like the Cooling system accumulator (11531702201) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cooling system pipe assembly?
- Each item in the Cooling system pipe corresponds to the numbered list below the illustration. For the 5 Series E39 535i, you can identify the Cooling system accumulator by locating its position on the schematic, which then links to the official BMW part number 11531702201 for the Engine section.
