Belt Drive Climate Compressor for BMW 5 Series E39 540iP (1998)

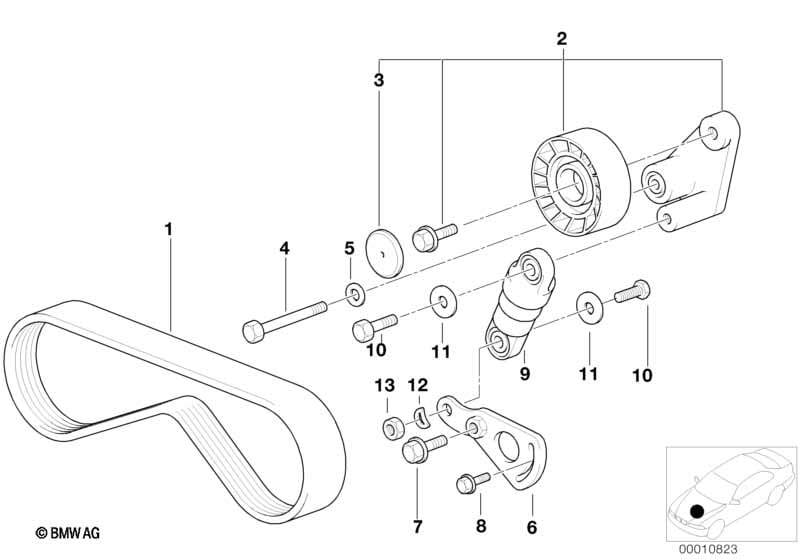

This Belt Drive Climate Compressor technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 540iP. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ribbed v-belt | PK5X1004 | 1 | 09/1997 | 11287636376 | Shop at ECS Tuning | ||||
| 02 | Adjusting pulley with lever | 1 | 09/1997 | 11281742859 | $138.08 | Shop at ECS Tuning | ||||
| 03 | Protection cap | 1 | 09/1997 | 11281435114 | $2.37 | Shop at ECS Tuning | ||||
| 04 | Hexagon bolt | M8X65 | 1 | 09/1997 | 02/2000 | 07119903018 | Shop at ECS Tuning | |||
| 05 | Washer | 1 | 09/1997 | 11281713970 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Adjust-lever | 1 | 09/1997 | 11281747459 | $8.35 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M8X32-ZNS | 1 | 09/1997 | 07119900902 | $0.78 | Shop at ECS Tuning | |||
| 08 | Hex bolt with washer | M6X20 | 1 | 09/1997 | 07119904527 | $0.44 | Shop at ECS Tuning | |||
| 09 | Belt tensioner | 1 | 09/1997 | 11281745545 | $101.95 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M8X30-8.8-ZNS3 | 2 | 09/1997 | 07119902901 | $0.25 | Shop at ECS Tuning | |||
| 11 | Washer | 2 | 09/1997 | 11287835130 | $0.72 | Shop at ECS Tuning | ||||
| 12 | Wave washer | 8,4X15-ZNS3 | 1 | 09/1997 | 07119904115 | $0.09 | Shop at ECS Tuning | |||
| 13 | Hex nut | M8-8-ZNNIV SI | 1 | 09/1997 | 07119905515 | $0.16 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 540iP Belt Drive Climate Compressor?
- This technical diagram illustrates the Belt Drive Climate Compressor within the Engine group for the 5 Series E39 540iP produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Ribbed v-belt (Part #11287636376).
- Which models use the hardware listed in this Belt Drive Climate Compressor?
- The hardware and components featured in the Belt Drive Climate Compressor are specific to the 5 Series E39 540iP produced during 1998. These technical specifications ensure that parts like the Ribbed v-belt (11287636376) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Belt Drive Climate Compressor assembly?
- Each item in the Belt Drive Climate Compressor corresponds to the numbered list below the illustration. For the 5 Series E39 540iP, you can identify the Ribbed v-belt by locating its position on the schematic, which then links to the official BMW part number 11287636376 for the Engine section.
