Cylinder head cover for BMW 5 Series E39 528i (2000)

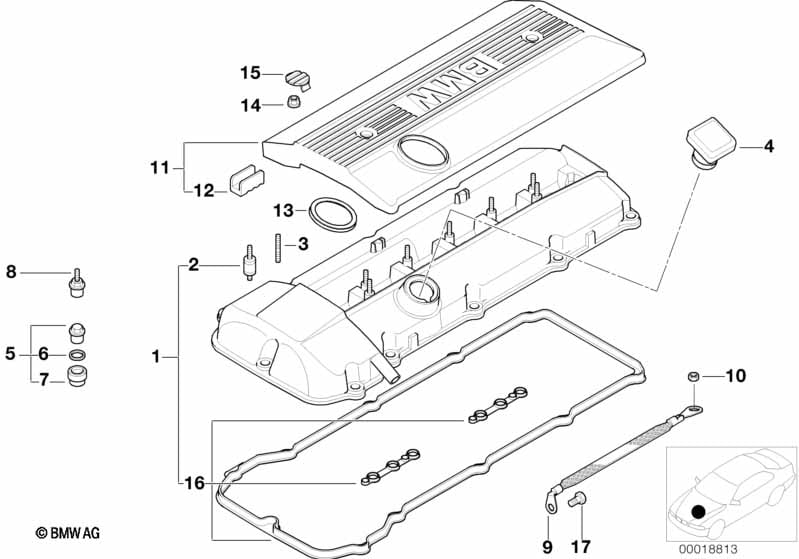

This Cylinder head cover technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder head cover | 1 | 07/1999 | 11121432928 | $216.50 | Shop at ECS Tuning | ||||
| 02 | Rubber Mounting | 2 | 09/1998 | 11121730356 | $15.63 | Shop at ECS Tuning | ||||
| 03 | Stud bolt | M6X30-ZNNIV SI | X | 09/1998 | 06/2003 | 07129904544 | $1.42 | Shop at ECS Tuning | ||
| 04 | Cap for oil filler | 1 | 09/1998 | 11121743294 | $7.49 | Shop at ECS Tuning | ||||
| 04 | Cap for oil filler | 1 | 09/1998 | 11127509328 | $7.78 | Shop at ECS Tuning | ||||
| 05 | Cap nut | M6 | 12 | 09/1998 | 11121738607 | $3.10 | ENDED | Shop at ECS Tuning | ||
| 06 | Washer | 12 | 09/1998 | 11127838077 | $1.23 | Shop at ECS Tuning | ||||
| 07 | Rubber seal | 12 | 09/1998 | 11121437395 | $1.17 | Shop at ECS Tuning | ||||
| 08 | Cap nut | M6 | 4 | 07/1999 | 11121738608 | $3.17 | Shop at ECS Tuning | |||
| 09 | Earth strap | 2 | 09/1998 | 12421437633 | $6.28 | Shop at ECS Tuning | ||||
| 11 | Cover | 1 | 09/1998 | 11127526445 | $106.44 | Shop at ECS Tuning | ||||
| 12 | Distance rubber | 4 | 09/1998 | 11121730352 | $1.87 | Shop at ECS Tuning | ||||
| 13 | Gasket ring | 1 | 11127526447 | $4.12 | Shop at ECS Tuning | |||||
| 14 | Hex nut with plate | AM6-8-ZNNIV SI | 2 | 09/1998 | 07129904553 | $0.64 | Shop at ECS Tuning | |||
| 15 | Cap | 2 | 09/1998 | 11121726089 | $2.12 | Shop at ECS Tuning | ||||
| 16 | Set of profile gaskets | 1 | 09/1998 | 11129070990 | $38.45 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
