Waterpump - Thermostat for BMW 5 Series E39 528i (2000)

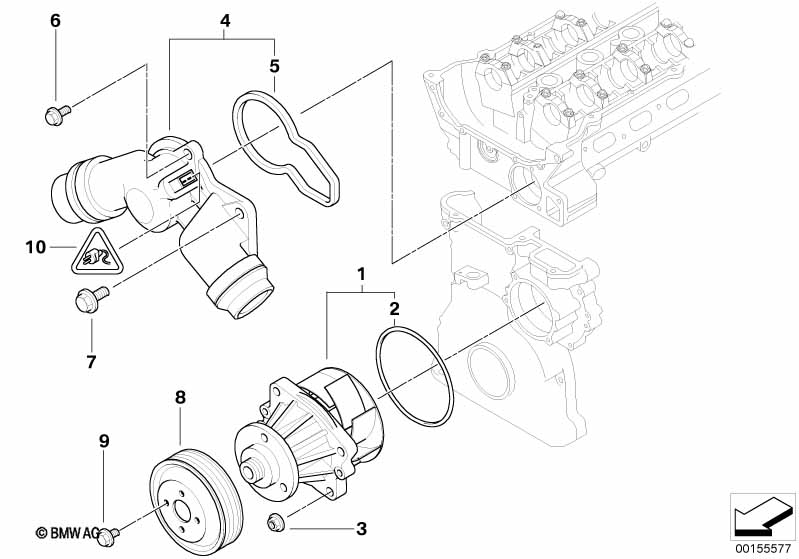

This Waterpump - Thermostat technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Coolant pump, mechanical | 1 | 09/1998 | 11517509985 | Shop at ECS Tuning | |||||
| 02 | O-ring | 68X5 | 1 | 09/1998 | 11511711484 | $3.44 | Shop at ECS Tuning | |||
| 03 | Hex nut with plate | AM6-8-ZNNIV SI | 4 | 09/1998 | 07129904553 | $0.64 | Shop at ECS Tuning | |||
| 04 | Thermostat housing with thermostat | 1 | 09/1998 | 11531437040 | $90.38 | Shop at ECS Tuning | ||||
| 05 | Gasket | 1 | 09/1998 | 11537509357 | $8.44 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M6X25-Z1 | 3 | 09/1998 | 11531740317 | $0.67 | ENDED | Shop at ECS Tuning | ||
| 07 | Hex bolt with washer | M8X30-Z3 | 1 | 09/1998 | 11531740316 | $0.82 | ENDED | Shop at ECS Tuning | ||
| 08 | Pulley | 1 | 09/1998 | 11511436590 | $30.32 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M6X16-U1-8.8 | 4 | 09/1998 | 07119904524 | $0.25 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i Waterpump - Thermostat?
- This technical diagram illustrates the Waterpump - Thermostat within the Engine group for the 5 Series E39 528i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Coolant pump, mechanical (Part #11517509985).
- Which models use the hardware listed in this Waterpump - Thermostat?
- The hardware and components featured in the Waterpump - Thermostat are specific to the 5 Series E39 528i produced during 2000. These technical specifications ensure that parts like the Coolant pump, mechanical (11517509985) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Waterpump - Thermostat assembly?
- Each item in the Waterpump - Thermostat corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the Coolant pump, mechanical by locating its position on the schematic, which then links to the official BMW part number 11517509985 for the Engine section.
