Valve train,timing chain,upper/outlet for BMW 5 Series E39 525i (2003)

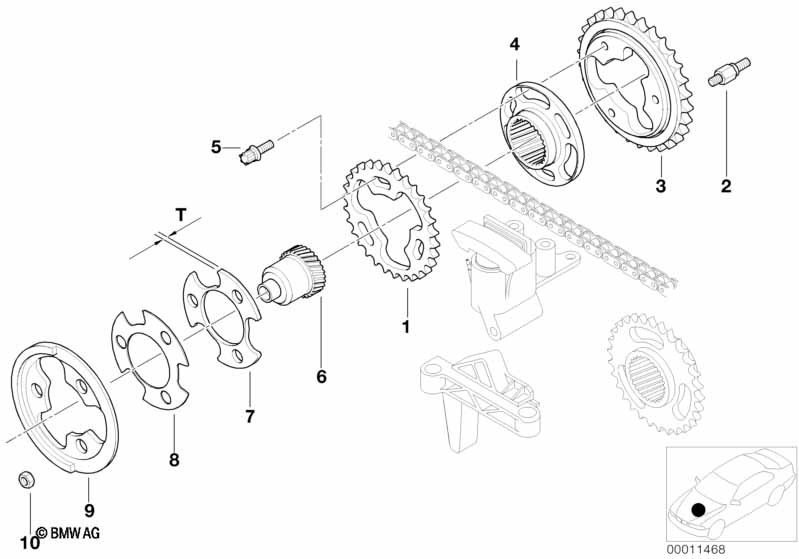

This Valve train,timing chain,upper/outlet technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sprocket | 1 | 11361744262 | $20.83 | Shop at ECS Tuning | |||||
| 02 | Stud bolt | 3 | 11361432373 | $3.88 | Shop at ECS Tuning | |||||
| 03 | Sprocket | 1 | 11361438375 | +core | Shop at ECS Tuning | |||||
| 04 | Tooth sleeve | 1 | 11361438306 | $41.70 | Shop at ECS Tuning | |||||
| 05 | Torx bolt | M7X18 | 3 | 11361432752 | $0.62 | Shop at ECS Tuning | ||||
| 06 | Splined shaft | 1 | 11361715027 | $44.13 | Shop at ECS Tuning | |||||
| 07 | Stop disk | T=3,5MM | 1 | 11361432754 | $11.79 | Shop at ECS Tuning | ||||
| 08 | Diaphragm spring | 1 | 11361436722 | $3.96 | Shop at ECS Tuning | |||||
| 09 | Impulse sending wheel | 1 | 11361438351 | $33.22 | Shop at ECS Tuning | |||||
| 10 | Hex nut | M6-10-PHR | 3 | 07119900910 | $0.20 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525i Valve train,timing chain,upper/outlet?
- This technical diagram illustrates the Valve train,timing chain,upper/outlet within the Engine group for the 5 Series E39 525i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Sprocket (Part #11361744262).
- Which models use the hardware listed in this Valve train,timing chain,upper/outlet?
- The hardware and components featured in the Valve train,timing chain,upper/outlet are specific to the 5 Series E39 525i produced during 2003. These technical specifications ensure that parts like the Sprocket (11361744262) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Valve train,timing chain,upper/outlet assembly?
- Each item in the Valve train,timing chain,upper/outlet corresponds to the numbered list below the illustration. For the 5 Series E39 525i, you can identify the Sprocket by locating its position on the schematic, which then links to the official BMW part number 11361744262 for the Engine section.
