What assembly is shown in the BMW 5 Series E39 528iExhaust manifold with catalyst?

This technical diagram illustrates the Exhaust manifold with catalyst within the Engine group for the 5 Series E39 528i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the RP exhaust manifold with catalytic conv (Part #11627503673).

Which models use the hardware listed in this Exhaust manifold with catalyst?

The hardware and components featured in the Exhaust manifold with catalyst are specific to the 5 Series E39 528i produced during 2000. These technical specifications ensure that parts like the RP exhaust manifold with catalytic conv (11627503673) are correctly matched to the vehicle's structural and mechanical requirements.

How do I find specific parts within the Exhaust manifold with catalyst assembly?

Each item in the Exhaust manifold with catalyst corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the RP exhaust manifold with catalytic conv by locating its position on the schematic, which then links to the official BMW part number 11627503673 for the Engine section.

Exhaust manifold with catalyst for BMW 5 Series E39 528i (2000)

Sign In
Sign Out
Account

Donate Go Ad Free

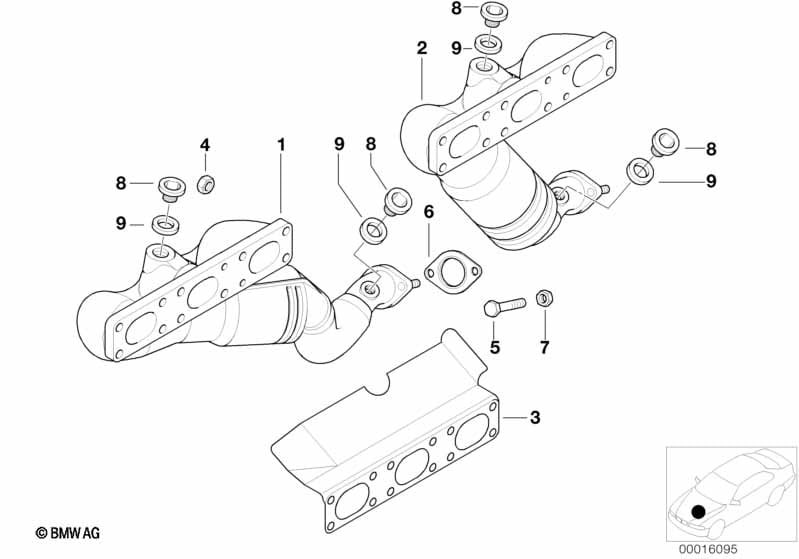

This Exhaust manifold with catalyst technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.

No.	Description	Supp.	Qty	From	Part Number	Price
01	RP exhaust manifold with catalytic conv	ZYL. 1-3	1	09/1998	11627503673	$822.30	Shop at ECS Tuning
02	RP exhaust manifold with catalytic conv	ZYL. 4-6	1	09/1998	11627503936	$798.16	Shop at ECS Tuning
03	Gasket w/heat prot.shield asbestosfree		2	09/1998	11621732969	$39.83	Shop at ECS Tuning
	Required for repair
--	Hex nut		16	09/1998	11721437202	$0.72	Shop at ECS Tuning
04	Hex nut		16	09/1998	11721437202	$0.72	Shop at ECS Tuning
05	Hex bolt	M10X40-SW16	4	09/1998	11621427586	$21.57	Shop at ECS Tuning
06	Flat gasket		2	11/1998	18301440183	$11.93	Shop at ECS Tuning
	Required for repair
--	Hex bolt	M10X40-SW16	4	11/1998	11621427586	$21.57	Shop at ECS Tuning
--	Hex nut	M10	4	11/1998	18301737774	$1.65	Shop at ECS Tuning
07	Hex nut	M10	4	09/1998	18301737774	$1.65	Shop at ECS Tuning
	For vehicles with without catalytic converter	S199A=Yes
08	Screw Plug With Gasket Ring	M18X1,5	4		11621437517	$11.43	Shop at ECS Tuning

Frequently Asked Questions

What assembly is shown in the BMW 5 Series E39 528i Exhaust manifold with catalyst?: This technical diagram illustrates the Exhaust manifold with catalyst within the Engine group for the 5 Series E39 528i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the RP exhaust manifold with catalytic conv (Part #11627503673).
Which models use the hardware listed in this Exhaust manifold with catalyst?: The hardware and components featured in the Exhaust manifold with catalyst are specific to the 5 Series E39 528i produced during 2000. These technical specifications ensure that parts like the RP exhaust manifold with catalytic conv (11627503673) are correctly matched to the vehicle's structural and mechanical requirements.
How do I find specific parts within the Exhaust manifold with catalyst assembly?: Each item in the Exhaust manifold with catalyst corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the RP exhaust manifold with catalytic conv by locating its position on the schematic, which then links to the official BMW part number 11627503673 for the Engine section.

Exhaust manifold with catalyst for BMW 5 Series E39 528i (2000)
