Oil pan/oil level indicator for BMW 5 Series E39 525i (2003)

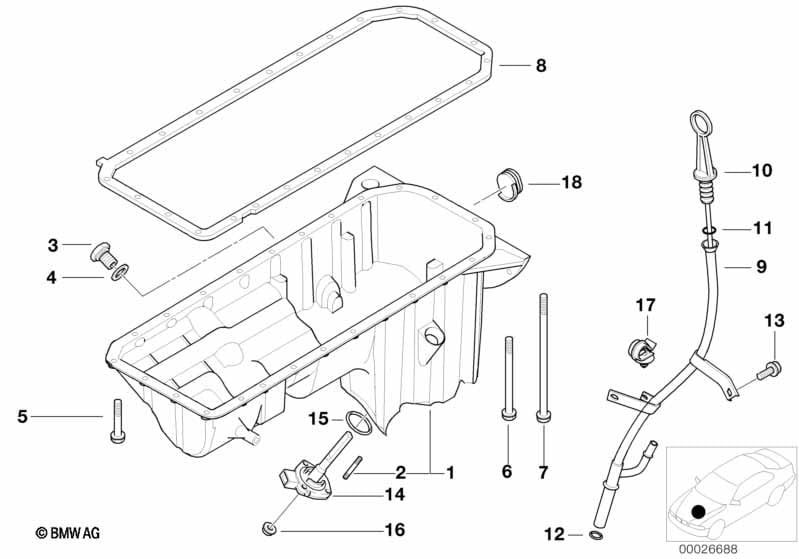

This Oil pan/oil level indicator technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil Pan | 1 | 11131709235 | $435.35 | Shop at ECS Tuning | |||||
| 02 | Stud bolt | M6X30-ZNNIV SI | 3 | 07129904544 | $1.42 | Shop at ECS Tuning | ||||
| 03 | Screw plug | M12X16 | 1 | 11137535106 | $3.68 | Shop at ECS Tuning | ||||
| 04 | Gasket ring | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | 21 | 11131740000 | $0.37 | Shop at ECS Tuning | |||||
| 06 | Hex bolt with washer | M6X64 | 2 | 11131435807 | $0.67 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X100 | 2 | 11131435806 | $1.08 | Shop at ECS Tuning | ||||
| 08 | Gasket Steel | 1 | 11131437237 | $48.50 | Shop at ECS Tuning | |||||
| 09 | Guide tube | 1 | 07/2003 | 11437531258 | $40.73 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Cable holder | 1 | 07/2003 | 12521732532 | $0.70 | Shop at ECS Tuning | ||||
| 10 | Dipstick | 1 | 11431436293 | $15.30 | Shop at ECS Tuning | |||||
| 11 | O-ring | 9X2,2 | 2 | 11431717666 | $0.73 | Shop at ECS Tuning | ||||
| 12 | O-ring | 19,5X3 | 1 | 11431740045 | $1.81 | Shop at ECS Tuning | ||||
| 13 | Hex bolt with washer | M8X20-U1-8.8 | 1 | 07119904992 | $0.55 | Shop at ECS Tuning | ||||
| 14 | Oil levelling sensor | 1 | 12617508003 | $163.50 | Shop at ECS Tuning | |||||
| 15 | Gasket ring | 1 | 12611744292 | $6.42 | Shop at ECS Tuning | |||||
| 16 | Hex nut with plate | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
