Mounting parts f intake manifold system for BMW 5 Series E39 528i (2000)

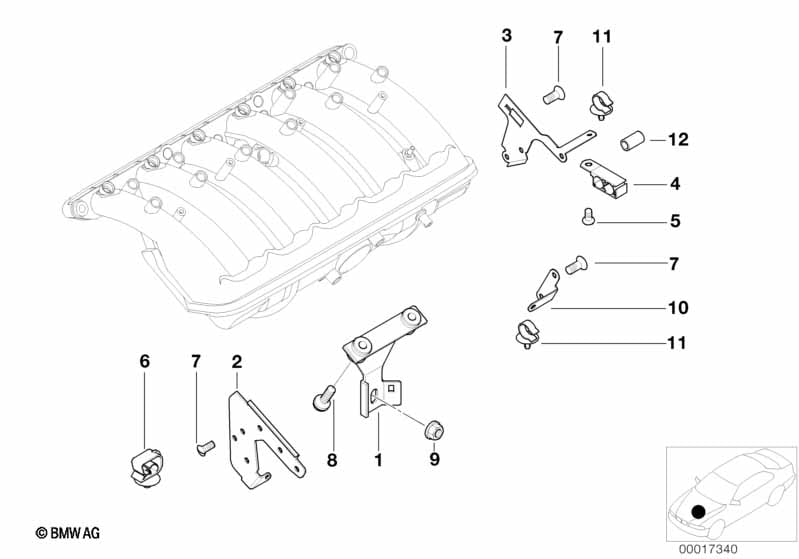

This Mounting parts f intake manifold system technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake manifold support | 1 | 09/1998 | 11611436630 | $16.33 | Shop at ECS Tuning | ||||
| 02 | Bracket activated Carbon container | 1 | 09/1998 | 11611705171 | $8.05 | Shop at ECS Tuning | ||||
| 03 | Fuel pipe bracket | 1 | 09/1998 | 11611438265 | $15.41 | ENDED | Shop at ECS Tuning | |||
| 04 | Clip | 1 | 09/1998 | 13311722326 | $1.73 | Shop at ECS Tuning | ||||
| 05 | Torx-bolt with washer | M6X10 | 1 | 09/1998 | 11611708274 | $0.47 | Shop at ECS Tuning | |||
| 06 | Cable clip | 1 | 09/1998 | 61138350836 | $0.42 | Shop at ECS Tuning | ||||
| 07 | Screw | K60X22 | 2 | 09/1998 | 11617533331 | $0.75 | Shop at ECS Tuning | |||
| 08 | Torx-bolt with washer | M6X25 | 2 | 09/1998 | 11611440385 | $0.77 | Shop at ECS Tuning | |||
| 09 | Hex nut | AM10-10-ZNS3 | 1 | 09/1998 | 07129904865 | $1.00 | Shop at ECS Tuning | |||
| 10 | holder sucking jet pump | 1 | 09/1998 | 11611438267 | $11.92 | ENDED | Shop at ECS Tuning | |||
| 11 | Cable holder | 2 | 09/1998 | 12521747181 | $0.58 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i Mounting parts f intake manifold system?
- This technical diagram illustrates the Mounting parts f intake manifold system within the Engine group for the 5 Series E39 528i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Intake manifold support (Part #11611436630).
- Which models use the hardware listed in this Mounting parts f intake manifold system?
- The hardware and components featured in the Mounting parts f intake manifold system are specific to the 5 Series E39 528i produced during 2000. These technical specifications ensure that parts like the Intake manifold support (11611436630) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mounting parts f intake manifold system assembly?
- Each item in the Mounting parts f intake manifold system corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the Intake manifold support by locating its position on the schematic, which then links to the official BMW part number 11611436630 for the Engine section.
