Lubrication system-Oil filter for BMW 5 Series E39 525i (2003)
This Lubrication system-Oil filter technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Aggregate support with oil filter | 1 | 11421713838 | $345.60 | Shop at ECS Tuning | |||||

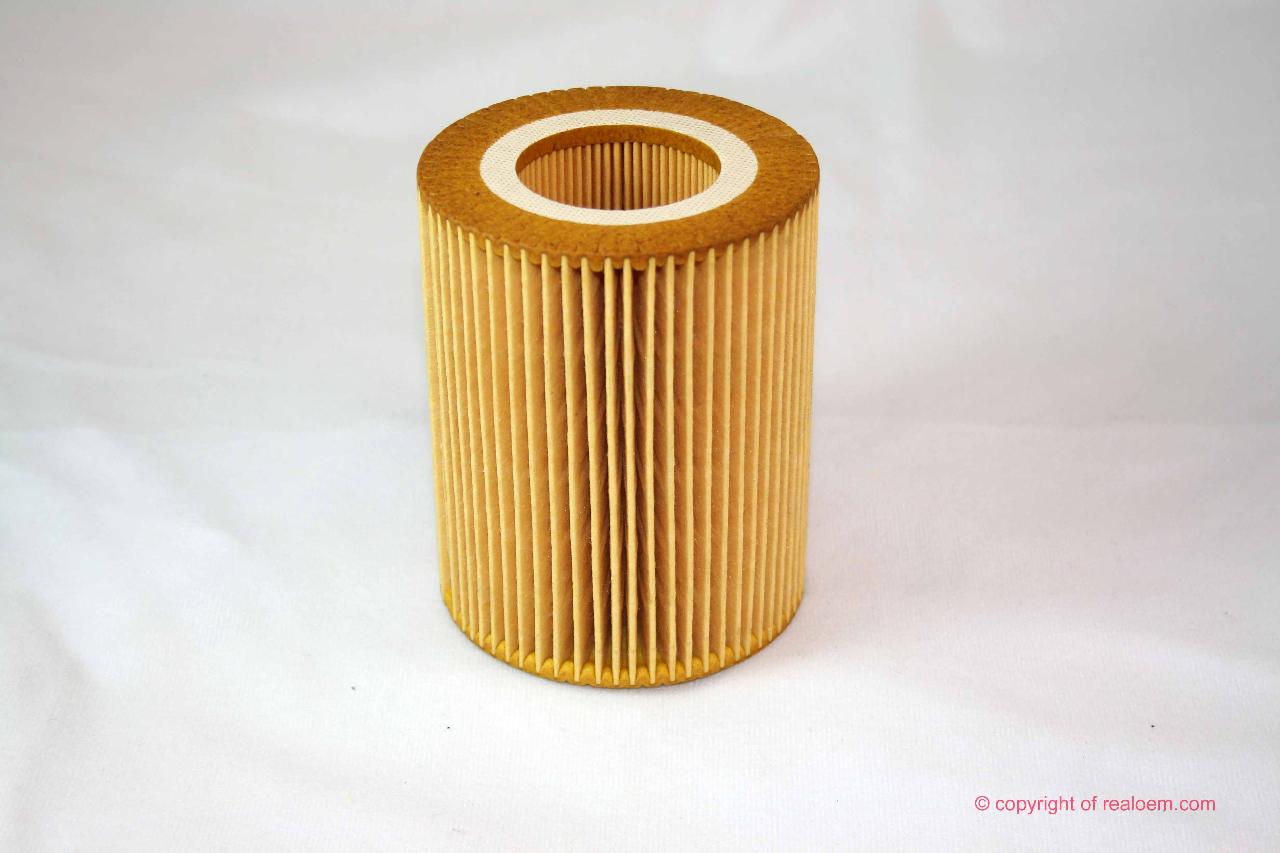

| 02 | Set oil-filter element | 1 | 11427512300 | $12.25 | Shop at ECS Tuning | |||||
| 03 | Oil filter cover | 1 | 11421744000 | $26.45 | Shop at ECS Tuning | |||||
| 04 | O-ring | 91X4 | 1 | 11421741000 | $5.04 | Shop at ECS Tuning | ||||
| 05 | O-ring | 7X2,5 | 2 | 11427549573 | Shop at ECS Tuning | |||||
| 06 | Gasket | 1 | 11421719855 | $6.08 | Shop at ECS Tuning | |||||
| 07 | Hex bolt with washer | M8X55-U1 | 3 | 07119905391 | $1.27 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M8X70-Z1-ZNS3 | 2 | 07119906675 | Shop at ECS Tuning | |||||
| 09 | Six-point bolt M8x100-8.8 | 1 | 07119905696 | $1.82 | Shop at ECS Tuning | |||||
| 10 | Gasket ring | A14X20-CUSN | 2 | 32411093596 | $0.31 | Shop at ECS Tuning | ||||
| 11 | Hollow bolt | M14X1,5X26 | 1 | 32416852469 | Shop at ECS Tuning | |||||
| 12 | Oil pressure switch | M12X1,5 | 1 | 12618611273 | Shop at ECS Tuning | |||||
| 13 | Temperature sensor coolant / oil | 1 | 13621433076 | $16.27 | Shop at ECS Tuning |
