Belt Drive Water Pump/Alternator for BMW 5 Series E39 528i (2000)

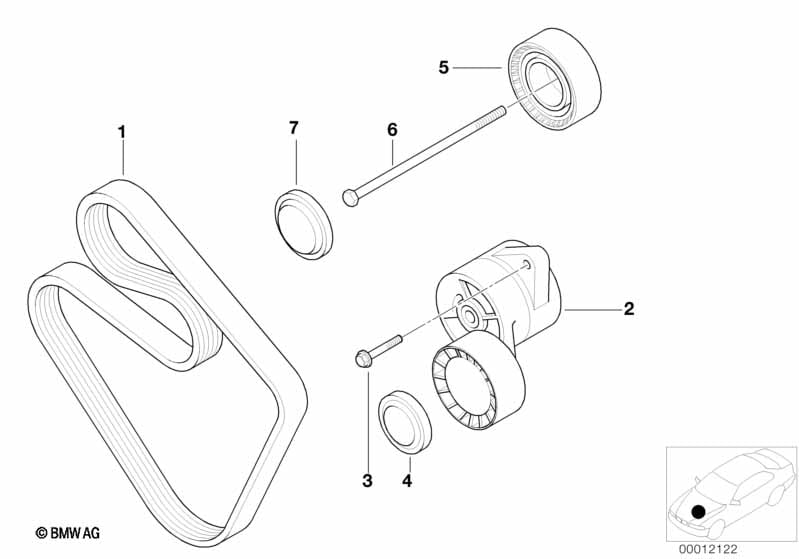

This Belt Drive Water Pump/Alternator technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to mechanical belt tensioner |
|||||||||
| 01 | Ribbed v-belt | 6PK X 1538 | 1 | 09/1998 | 11287636379 | Shop at ECS Tuning | ||||
| 02 | Complete hydraulic belt tensioner | 1 | 09/1998 | 11287838797 | $69.64 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Protection cap | 1 | 09/1998 | 12311713143 | $0.42 | Shop at ECS Tuning | ||||
| -- | Protection cap adjusting pulley | 1 | 09/1998 | 11281727159 | $2.37 | Shop at ECS Tuning | ||||
| -- | Mudguard | 1 | 09/1998 | 11281730532 | $2.37 | Shop at ECS Tuning | ||||
| -- | Adjusting pulley | 1 | 09/1998 | 11281748131 | $45.97 | Shop at ECS Tuning | ||||
| -- | Washer | 1 | 09/1998 | 11287835130 | $0.72 | Shop at ECS Tuning | ||||

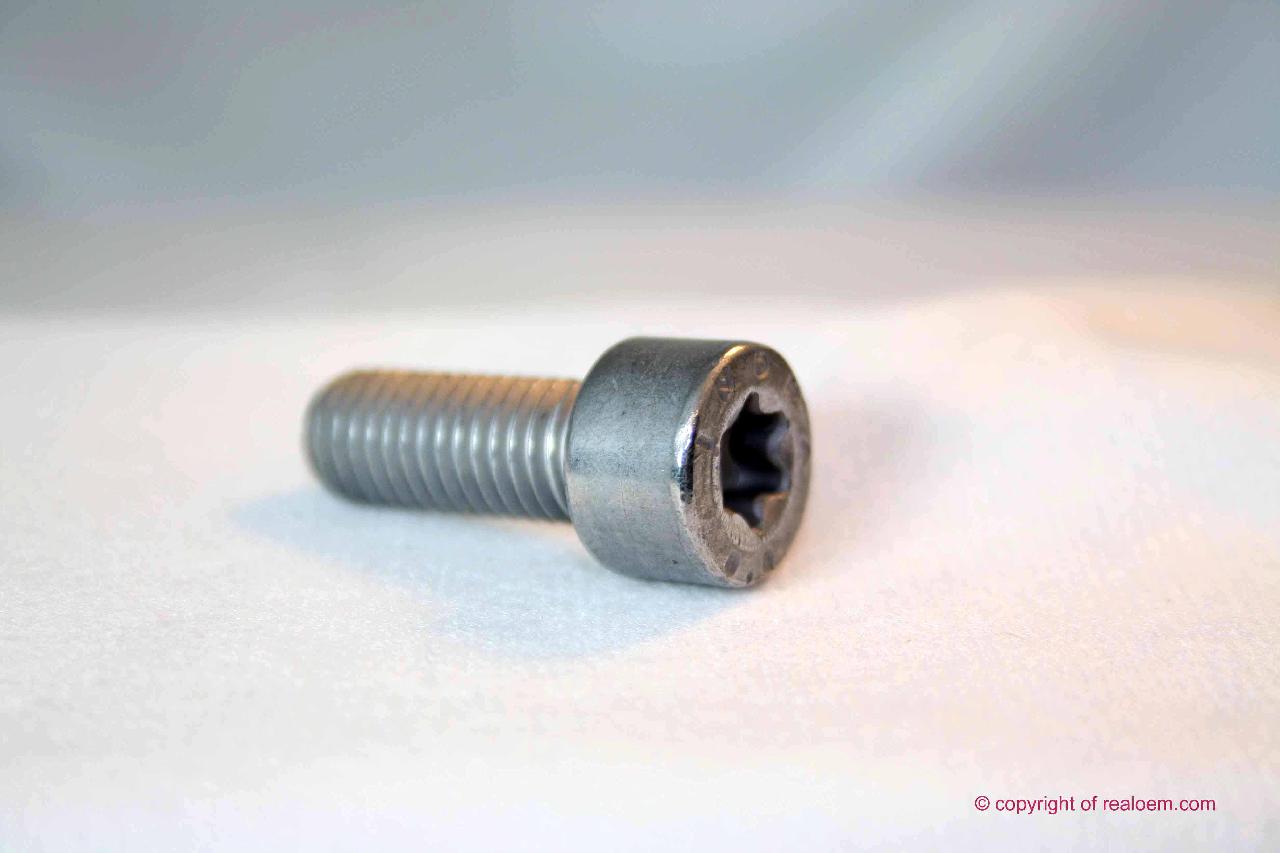

| -- | Fillister-head screw | M10X25 | 1 | 09/1998 | 07129905534 | $1.50 | Shop at ECS Tuning | |||
| -- | Hex bolt | M8X105 | 1 | 09/1998 | 07119904532 | $1.78 | Shop at ECS Tuning | |||
| -- | Hex bolt | M10X150 | 1 | 09/1998 | 07119904677 | $3.82 | Shop at ECS Tuning | |||
| -- | Hex bolt with washer | M8X35-U1 | 1 | 09/1998 | 07119905533 | $0.44 | Shop at ECS Tuning | |||
| 03 | Hex bolt with washer | M8X35-U1 | 2 | 09/1998 | 07119905533 | $0.44 | Shop at ECS Tuning | |||
| 04 | Protection cap | 1 | 09/1998 | 11281435114 | $2.37 | Shop at ECS Tuning | ||||
| 05 | Deflection pulley | 1 | 09/1998 | 11287841228 | $46.81 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M10X150 | 1 | 09/1998 | 07119904677 | $3.82 | Shop at ECS Tuning | |||
| 07 | Protection cap | 1 | 09/1998 | 11281730349 | $2.37 | Shop at ECS Tuning | ||||
