Lower timing case for BMW 5 Series E39 535i (2003)

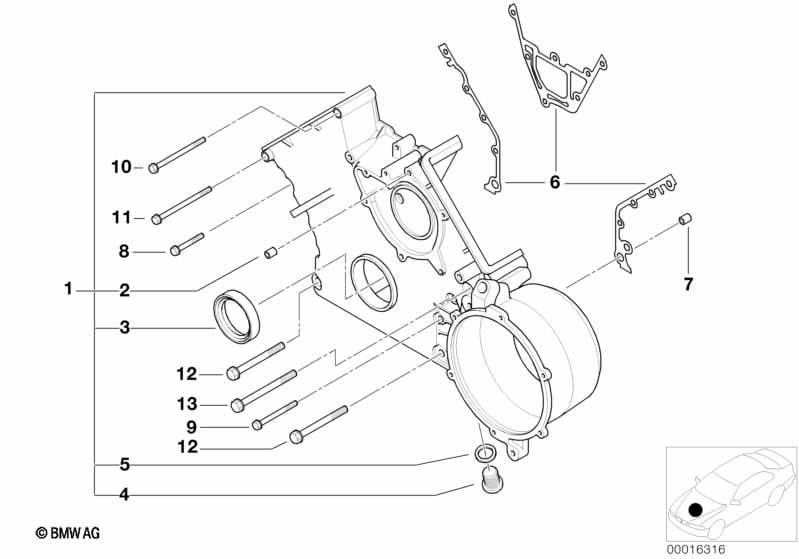

This Lower timing case technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Timing case cover, bottom | 1 | 09/1998 | 11141708209 | $264.39 | +core | Shop at ECS Tuning | |||
| Required for repair | ||||||||||
| -- | Loctite 5970 liquid sealant | 50ML | 1 | 09/1998 | 83190404517 | $23.40 | Shop at ECS Tuning | |||
| 02 | Dowel | D=8,5X9MM | 2 | 09/1998 | 11121726242 | $1.07 | Shop at ECS Tuning | |||
| 03 | Shaft seal | 48X65X10 | 1 | 09/1998 | 11141275466 | $24.02 | Shop at ECS Tuning | |||
| 04 | Screw plug | M18X1,5-ZNNIV | 1 | 09/1998 | 07119905428 | $11.47 | Shop at ECS Tuning | |||
| 05 | Gasket ring | A18X22-AL | 1 | 09/1998 | 07119963300 | $0.57 | Shop at ECS Tuning | |||
| 06 | Gasket set chain case | 1 | 09/1998 | 11141436978 | $22.40 | Shop at ECS Tuning | ||||
| 07 | Dowel | D=10,5MM | 2 | 09/1998 | 11121726238 | $1.62 | Shop at ECS Tuning | |||
| 08 | Hex bolt with washer | M6X40 | 4 | 09/1998 | 11141731753 | $0.58 | Shop at ECS Tuning | |||
| 09 | Hex bolt with washer | M6X60-Z1 | 4 | 09/1998 | 11141747632 | $0.77 | Shop at ECS Tuning | |||
| 10 | Hex bolt with washer | M6X80-U1-8.8 | 1 | 09/1998 | 07119906085 | Shop at ECS Tuning | ||||
| 11 | Hex bolt with washer | M6X85-U1-8.8 | 3 | 07119905548 | $3.42 | Shop at ECS Tuning | ||||
| 11 | Hex bolt with washer | M6X85-U1-8.8 | 1 | 09/1998 | 07119905548 | $3.42 | Shop at ECS Tuning | |||
| 12 | Hex bolt with washer | M8X75-Z1-ZNS3 | 2 | 09/1998 | 07119903947 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 535i Lower timing case?
- This technical diagram illustrates the Lower timing case within the Engine group for the 5 Series E39 535i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Timing case cover, bottom (Part #11141708209).
- Which models use the hardware listed in this Lower timing case?
- The hardware and components featured in the Lower timing case are specific to the 5 Series E39 535i produced during 2003. These technical specifications ensure that parts like the Timing case cover, bottom (11141708209) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lower timing case assembly?
- Each item in the Lower timing case corresponds to the numbered list below the illustration. For the 5 Series E39 535i, you can identify the Timing case cover, bottom by locating its position on the schematic, which then links to the official BMW part number 11141708209 for the Engine section.
