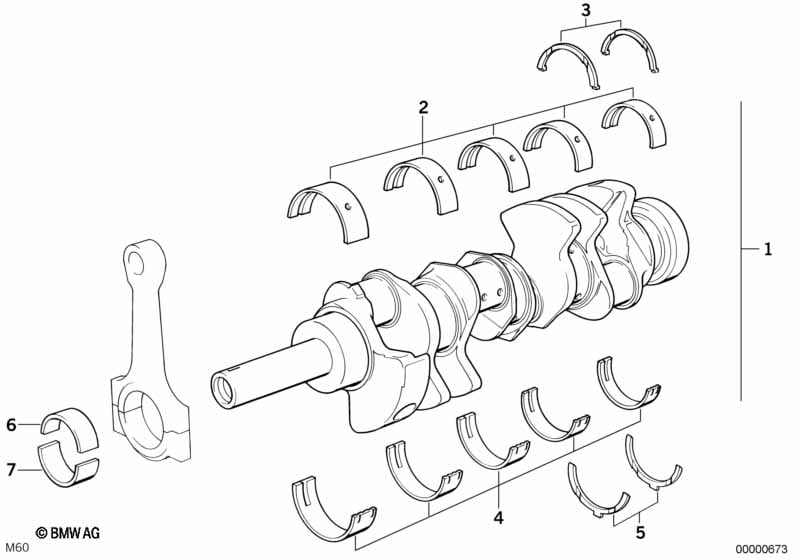

Crankshaft with bearing shells for BMW 7 Series E38 735i (2001)
This Crankshaft with bearing shells technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Crankshaft without bearing shells | HUB 78,9 | 1 | 11211741064 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bearing shell yellow | 70,00MM(0) | 5 | 11211725917 | $16.49 | Shop at ECS Tuning | ||||
| 02 | Bearing shell green | 70,00MM(0) | 5 | 11211725918 | $16.49 | Shop at ECS Tuning | ||||
| 02 | Bearing shell white | 70,00MM(0) | 5 | 11211725919 | $16.49 | Shop at ECS Tuning | ||||
| 02 | Bearing shell yellow | 69,75MM(+0,25) | 5 | 11211747380 | $24.95 | ENDED | Shop at ECS Tuning | |||
| 02 | Bearing shell green | 69,75MM(+0,25) | 5 | 11211747381 | $24.95 | Shop at ECS Tuning | ||||
| 02 | Bearing shell white | 69,75MM(+0,25) | 5 | 11211747382 | $21.71 | ENDED | Shop at ECS Tuning | |||
| 02 | Bearing shell yellow | 69,50MM(+0,50) | 5 | 11211747383 | $25.34 | Shop at ECS Tuning | ||||
| 02 | Bearing shell green | 69,50MM(+0,50) | 5 | 11211747384 | $24.73 | Shop at ECS Tuning | ||||
| 02 | Bearing shell white | 69,50MM(+0,50) | 5 | 11211747385 | $24.73 | ENDED | Shop at ECS Tuning | |||
| 02 | Bearing shell yellow | 69,25MM(+0,75) | 2 | 11211747386 | $25.34 | ENDED | Shop at ECS Tuning | |||
| 02 | Bearing shell green | 69,25MM(+0,75) | 2 | 11211747387 | $19.75 | ENDED | Shop at ECS Tuning | |||
| 02 | Bearing shell white | 69,25MM(+0,75) | 2 | 11211747388 | $23.32 | ENDED | Shop at ECS Tuning | |||
| 03 | Upper guide washer | 2,43MM(0) | 2 | 11211702147 | $4.20 | Shop at ECS Tuning | ||||
| 03 | Upper guide washer | 2,53MM(+0,1) | 2 | 11211702148 | $6.59 | Shop at ECS Tuning | ||||
| 03 | Upper guide washer | 2,63MM(+0,2) | 2 | 11211702149 | $6.59 | Shop at ECS Tuning | ||||
| 03 | Upper guide washer | 2,73MM(+0,3) | 2 | 11211702150 | $6.59 | Shop at ECS Tuning | ||||
| 04 | Bearing shell yellow | 70,00MM(0) | 5 | 11211725908 | $16.49 | Shop at ECS Tuning | ||||
| 04 | Bearing shell green | 70,00MM(0) | 5 | 11211725909 | $16.49 | Shop at ECS Tuning | ||||
| 04 | Bearing shell white | 70,00MM(0) | 5 | 11211725910 | $16.49 | Shop at ECS Tuning | ||||
| 04 | Bearing shell yellow | 69,75MM(+0,25) | 5 | 11211747392 | $21.31 | Shop at ECS Tuning | ||||
| 04 | Bearing shell green | 69,75MM(+0,25) | 5 | 11211747393 | $26.56 | Shop at ECS Tuning | ||||
| 04 | Bearing shell white | 69,75MM(+0,25) | 5 | 11211747394 | $24.73 | Shop at ECS Tuning | ||||
| 04 | Bearing shell yellow | 69,50MM(+0,50) | 5 | 11211747395 | $21.31 | Shop at ECS Tuning | ||||
| 04 | Bearing shell green | 69,50MM(+0,50) | 5 | 11211747396 | $21.31 | Shop at ECS Tuning | ||||
| 04 | Bearing shell white | 69,50MM(+0,50) | 5 | 11211747397 | $22.53 | Shop at ECS Tuning | ||||
| 04 | Bearing shell yellow | 69,25MM(+0,75) | 5 | 11211747398 | $17.19 | ENDED | Shop at ECS Tuning | |||
| 04 | Bearing shell green | 69,25MM(+0,75) | 5 | 11211747399 | $17.30 | ENDED | Shop at ECS Tuning | |||
| 04 | Bearing shell white | 69,25MM(+0,75) | 5 | 11211747400 | $22.93 | ENDED | Shop at ECS Tuning | |||
| 05 | Lower guide washer | 2,43MM(0) | 2 | 11211702144 | $4.20 | Shop at ECS Tuning | ||||
| 05 | Lower guide washer | 2,53MM(+0,1) | 2 | 11211702151 | $6.59 | Shop at ECS Tuning | ||||
| 05 | Lower guide washer | 2,63MM(+0,2) | 2 | 11211702152 | $6.59 | Shop at ECS Tuning | ||||
| 05 | Lower guide washer | 2,73MM(+0,3) | 2 | 11211702153 | $6.36 | Shop at ECS Tuning | ||||
| 06 | Bearing shell, blue | 48,00MM(0) | 8 | 11241715701 | $11.88 | Shop at ECS Tuning | ||||
| 06 | Bearing shell, blue | 47,75MM(+0,25) | 8 | 11241715703 | $18.31 | ENDED | Shop at ECS Tuning | |||
| 06 | Bearing shell, blue | 47,50MM(+0,50) | 8 | 11241715705 | $18.10 | Shop at ECS Tuning | ||||
| 06 | Bearing shell, blue | 47,25MM(+0,75) | 8 | 11241725262 | $14.98 | ENDED | Shop at ECS Tuning | |||
| 07 | Bearing shell, red | 48,00MM(0) | 8 | 11241715700 | $11.88 | Shop at ECS Tuning | ||||
| 07 | Bearing shell, red | 47,75MM(+0,25) | 8 | 11241715702 | $17.98 | Shop at ECS Tuning | ||||
| 07 | Bearing shell, red | 47,50MM(+0,50) | 8 | 11241715704 | $17.69 | ENDED | Shop at ECS Tuning | |||
| 07 | Bearing shell, red | 47,25MM(+0,75) | 8 | 11241725261 | $14.98 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
