timing gear timing chain top - VANOS for BMW 5 Series E39 540iP (2000)

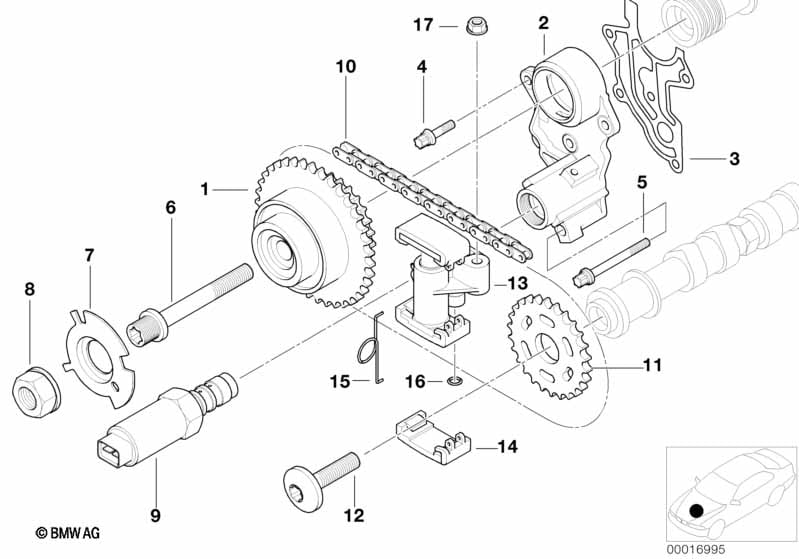

This timing gear timing chain top - VANOS technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 540iP. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.

timing gear timing chain top - VANOS
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 camshaft adjuster unit with pinion 2 09/1998 11361438694 $520.38 Shop at ECS Tuning
02 Distribution piece ZYL.1-4 1 09/1998 11361433660 $54.68 Shop at ECS Tuning
02 Distribution piece ZYL.5-8 1 09/1998 11361433664 $54.68 Shop at ECS Tuning
03 Gasket Steel ZYL.1-4 1 09/1998 11361705578 $6.08 Shop at ECS Tuning
03 Gasket Steel ZYL.5-8 1 09/1998 11361705579 $6.08 Shop at ECS Tuning
04 Torx bolt M6X20 8 09/1998 11361433504 $0.58 Shop at ECS Tuning
05 Torx bolt M6X56 2 09/1998 11361433663 $1.22 Shop at ECS Tuning

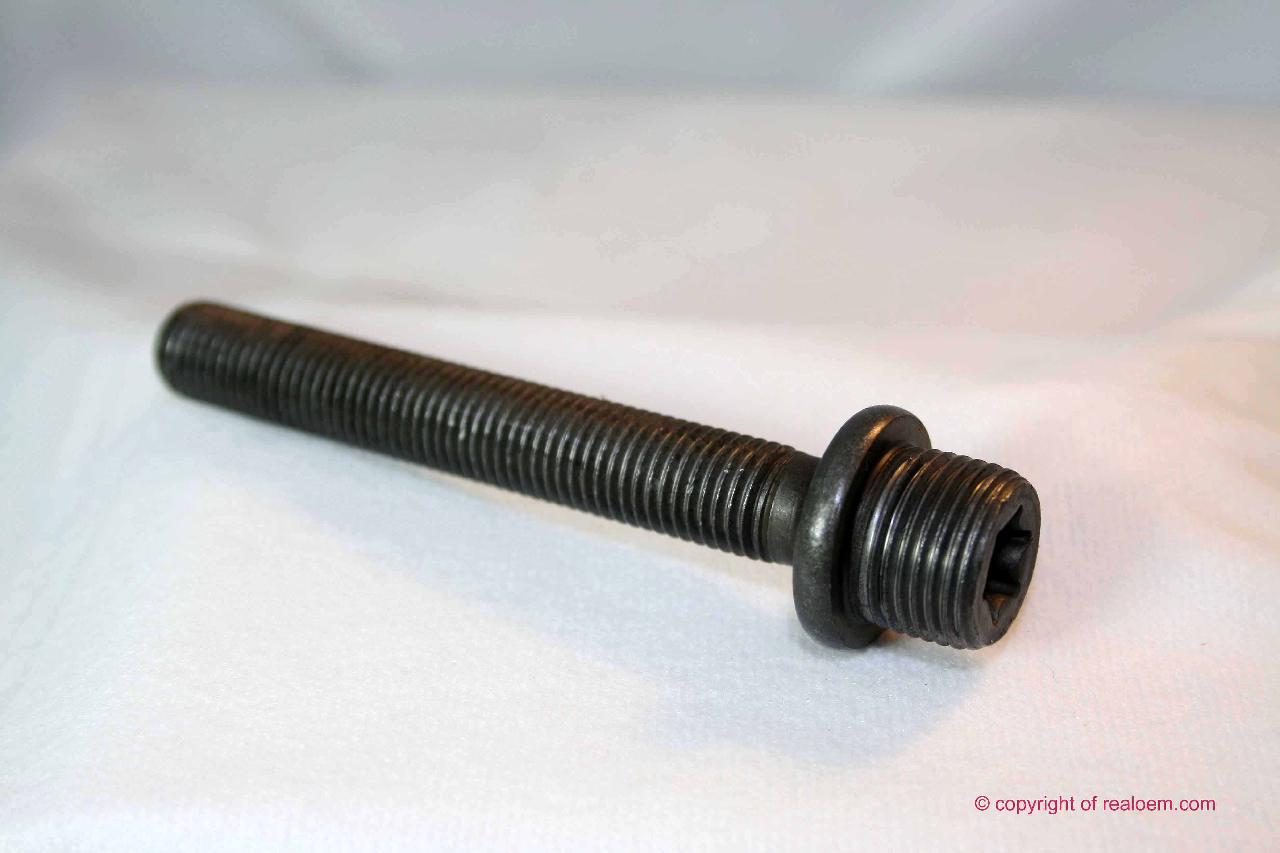

06 Torx bolt M12X1,5X85 2 09/1998 11361432438 $3.27 Shop at ECS Tuning

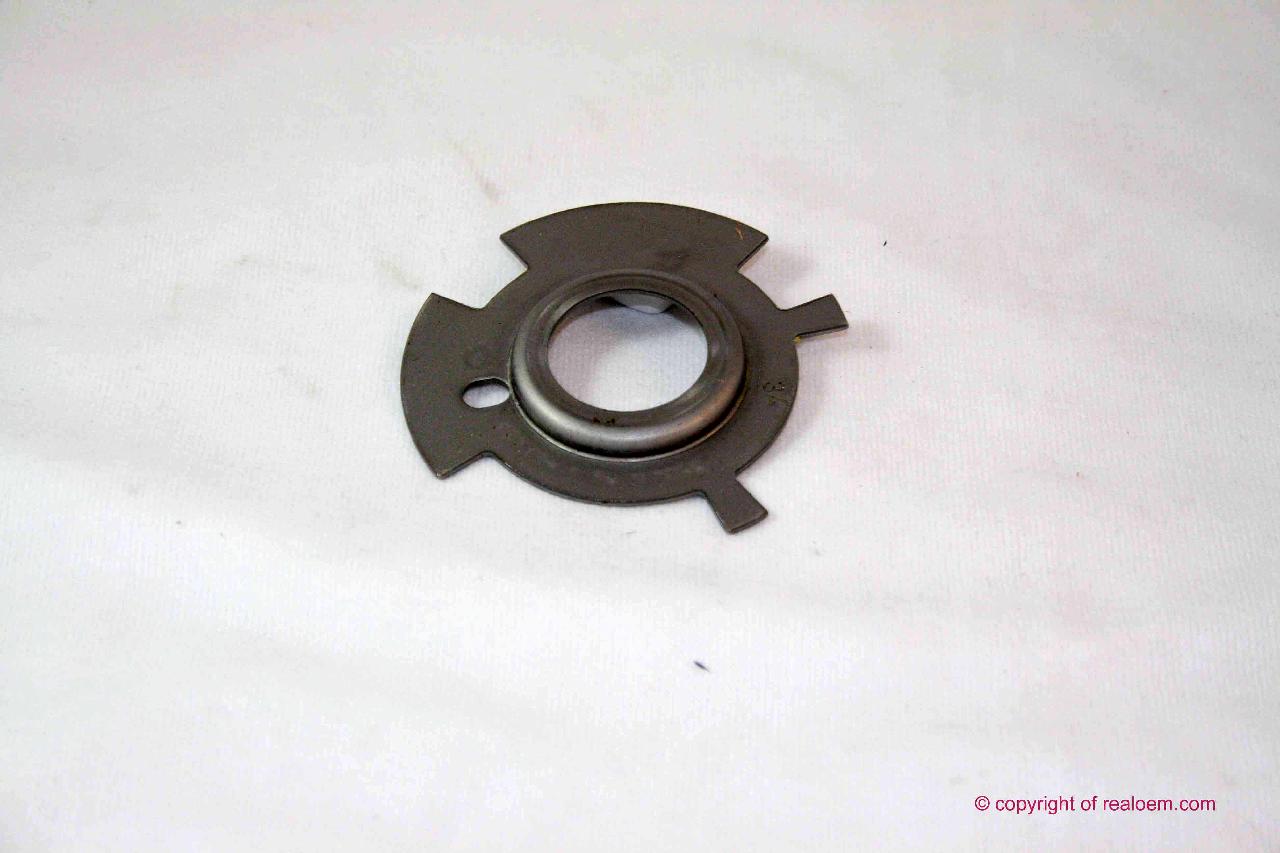

07 Impulse sending wheel 2 09/1998 11361438658 $11.07 +core Shop at ECS Tuning

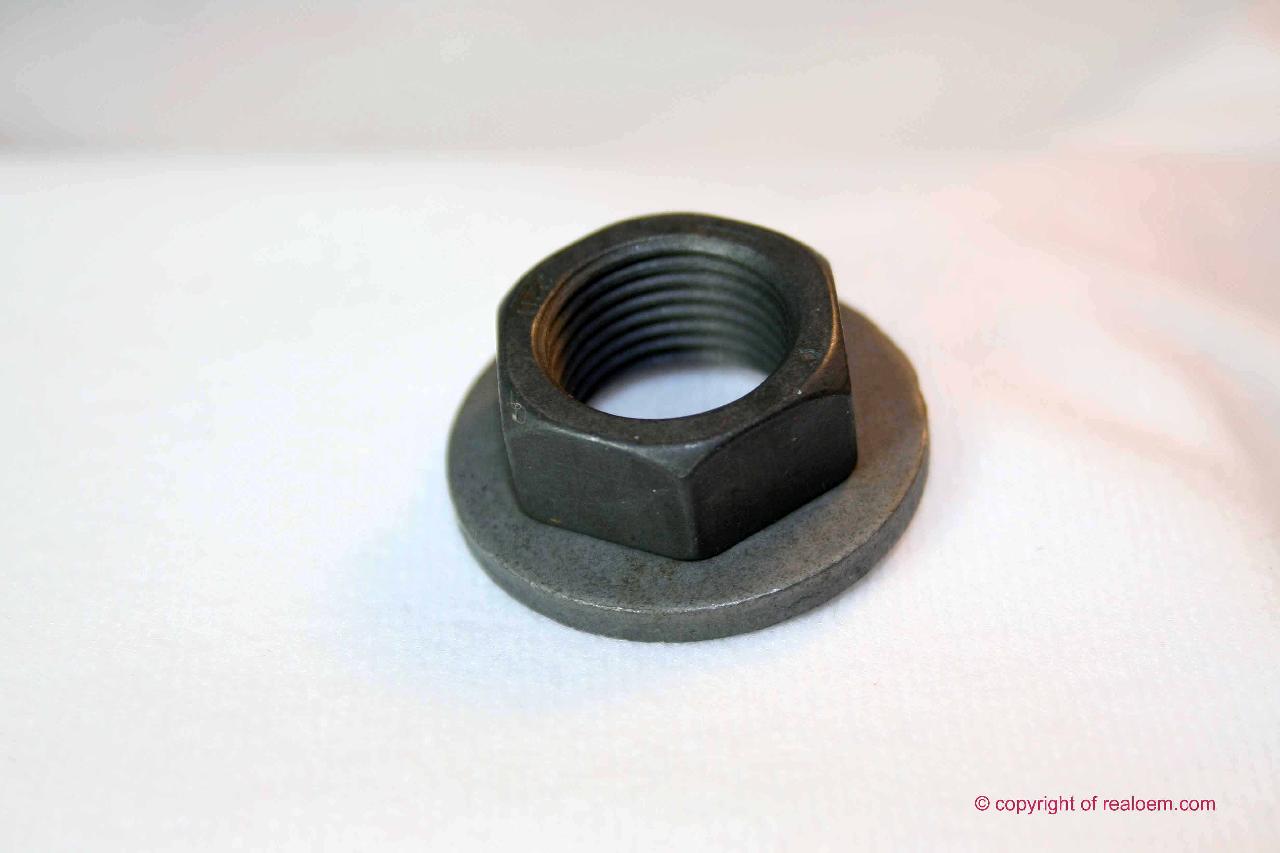

08 Nut M18X1,5 2 09/1998 11361432774 $2.18 Shop at ECS Tuning
09 Solenoid valve (SOLV) 2 09/1998 11367524489 $178.00 Shop at ECS Tuning
10 Timing chain 2 09/1998 11311747437 $43.59 Shop at ECS Tuning
11 Sprocket 2 09/1998 11311741115 $32.22 Shop at ECS Tuning
12 Torx bolt M12X1,5X38 LL 2 09/1998 11317500349 $3.78 Shop at ECS Tuning
13 Chain tensioner ZYL.1-4 1 09/1998 11311435026 $127.43 Shop at ECS Tuning
13 Chain tensioner ZYL.5-8 1 09/1998 11311435027 $127.43 Shop at ECS Tuning
14 Sliding piece 4 09/1998 11311435028 $4.98 Shop at ECS Tuning
15 Clip 2 09/1998 11311742176 $4.32 Shop at ECS Tuning
16 O-ring 7,1X1,8 2 09/1998 07119906361 $0.46 Shop at ECS Tuning
17 Flange nut M7 4 09/1998 11617573839 $0.33 Shop at ECS Tuning
