Valve Timing Gear - Cam Shaft for BMW 5 Series E39 540iP (2000)

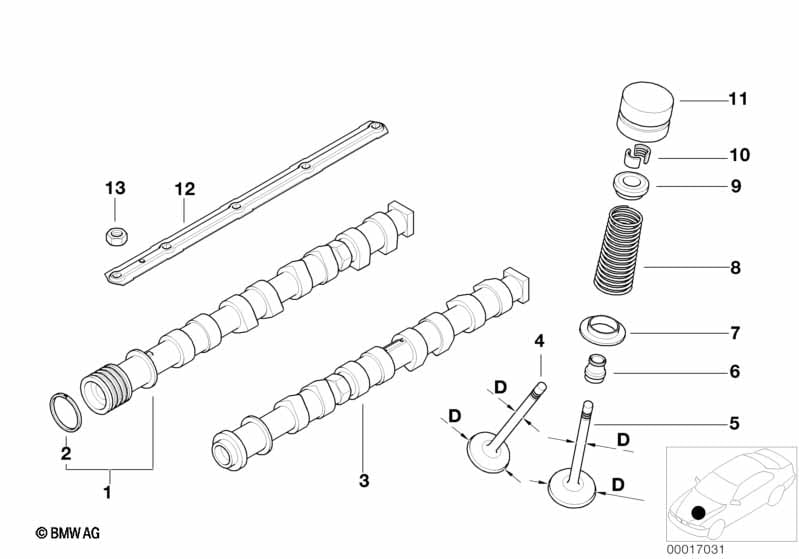

This Valve Timing Gear - Cam Shaft technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 540iP. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.

Valve Timing Gear - Cam Shaft
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Inlet camshaft ZYL.1-4 1 09/1998 11311745493 $585.21 Shop at ECS Tuning
01 Inlet camshaft ZYL.5-8 1 09/1998 11311745498 $585.21 +core Shop at ECS Tuning
02 Rectangring 6 09/1998 11311705512 $5.62 +core Shop at ECS Tuning
03 Camshaft exhaust ZYL.1-4 1 09/1998 11311710900 $585.21 ENDED Shop at ECS Tuning
03 Camshaft exhaust ZYL.5-8 1 09/1998 11311710901 $585.21 ENDED Shop at ECS Tuning
04 Intake valve 35,0/5,94MM 16 09/1998 11341435480 $24.08 Shop at ECS Tuning
VALVE HEAD THICKNESS: +0,2MM
04 Intake valve w.oversize VA.system +0,1mm 35,0/6,04MM 16 09/1998 11341736552 Shop at ECS Tuning
04 Intake valve w.oversize VA.system +0,2mm 35,0/6,14MM 16 09/1998 11341736553 Shop at ECS Tuning
05 Exhaust valve 16 09/1998 11341433699 Shop at ECS Tuning
VALVE HEAD THICKNESS: +0,2MM
05 Exh. valve w.oversize VA.system +0,1mm 30,5/6,04MM 16 09/1998 11341742824 Shop at ECS Tuning
05 Exhaust valve w.oversize VA.system+0,2mm 30,5/6,14MM 16 09/1998 11341742825 Shop at ECS Tuning
06 Repair kit valve seal ring 2 09/1998 11349063193 $70.17 Shop at ECS Tuning
07 Lower spring plate 32 09/1998 11341735254 $3.77 Shop at ECS Tuning
08 Valve spring 32 09/1998 11341745339 $4.07 Shop at ECS Tuning
09 Upper spring plate 32 09/1998 11341432453 $3.77 Shop at ECS Tuning
10 Valve collet D=6 64 09/1998 11341461405 $1.34 Shop at ECS Tuning
11 Hydraulic valve lifter 32 09/1998 11321440256 $32.50 Shop at ECS Tuning
12 Oil pipe ZYL.1-4 2 09/1998 11421725406 $33.78 Shop at ECS Tuning
12 Oil pipe ZYL.5-8 2 09/1998 11421725408 $33.78 Shop at ECS Tuning
13 Hex nut with plate M6-8-ZNNIV SI 20 09/1998 07119905544 $0.64 Shop at ECS Tuning
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
