Short engine for BMW 5 Series E39 535i (2003)

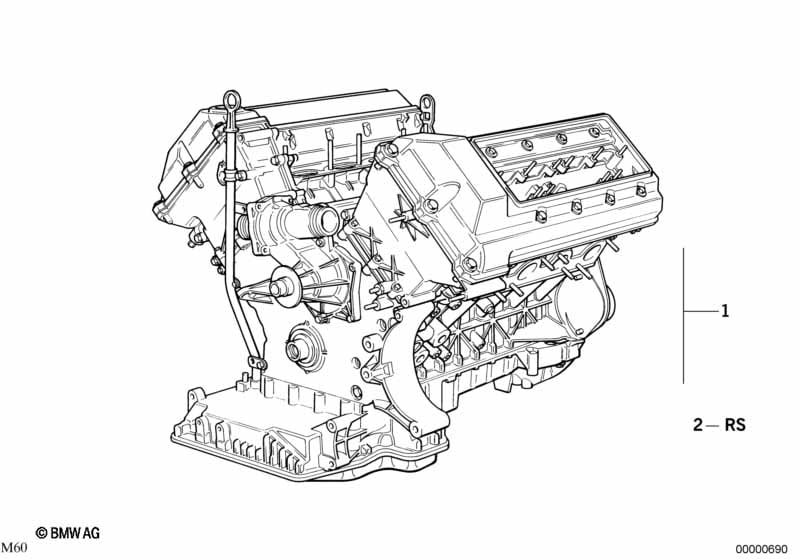

This Short engine technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with without catalytic converter |
S199A=No |
|||||||||
| 01 | Short engine | 358S2 | 1 | 09/1998 | 11001439763 | ENDED | Shop at ECS Tuning | |||
| 01 | Short engine | 358S2 | 1 | 09/1998 | 11001439764 | ENDED | Shop at ECS Tuning | |||
| For vehicles with without catalytic converter |
S199A=Yes |
|||||||||
| 01 | Short engine | 358S2 | 1 | 09/1998 | 11001439763 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 01 | Short engine | 358S2 | 1 | 09/1998 | 11001439764 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Adhesive | LOCTITE 648 | 1 | 09/1998 | 07589067732 | Shop at ECS Tuning | ||||
| 02 | Set Mounting Parts Short Engine | 1 | 11000008356 | $214.83 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 535i Short engine?
- This technical diagram illustrates the Short engine within the Engine group for the 5 Series E39 535i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Short engine (Part #11001439763).
- Which models use the hardware listed in this Short engine?
- The hardware and components featured in the Short engine are specific to the 5 Series E39 535i produced during 2003. These technical specifications ensure that parts like the Short engine (11001439763) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Short engine assembly?
- Each item in the Short engine corresponds to the numbered list below the illustration. For the 5 Series E39 535i, you can identify the Short engine by locating its position on the schematic, which then links to the official BMW part number 11001439763 for the Engine section.
