Cylinder head cover for BMW 5 Series E39 525d (2003)

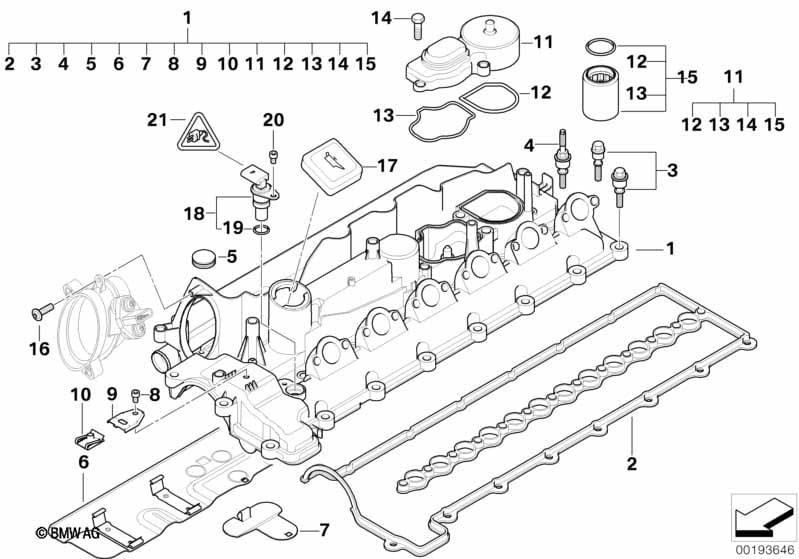

This Cylinder head cover technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder head cover | 1 | 11127786890 | $487.87 | Shop at ECS Tuning | |||||
| 02 | Profile-gasket | 1 | 11127796378 | $39.42 | Shop at ECS Tuning | |||||
| 03 | Set fixing element, exterior | 1 | 11120036235 | $42.62 | Shop at ECS Tuning | |||||
| 04 | Set fixing element, interior | 1 | 11120036237 | $43.40 | Shop at ECS Tuning | |||||
| 05 | Blind plug | 3 | 11122247705 | Shop at ECS Tuning | ||||||
| 06 | Heat protection shield | 1 | 11127808005 | Shop at ECS Tuning | ||||||
| 07 | Cover lid | 1 | 11122248580 | $17.52 | Shop at ECS Tuning | |||||
| 08 | ISA screw | M6X12 | 1 | 07129904831 | $1.20 | Shop at ECS Tuning | ||||
| 09 | Metal bracket | 1 | 11127787691 | $2.07 | Shop at ECS Tuning | |||||
| 10 | C-clip nut | M6-ZNS3 | 1 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 11 | Breather | 1 | 11127793163 | $64.68 | Shop at ECS Tuning | |||||
| 12 | Profile-gasket | 1 | 11127793165 | Shop at ECS Tuning | ||||||
| 13 | Profile-gasket | 1 | 11127793166 | Shop at ECS Tuning | ||||||
| 14 | ASA-Bolt | 4 | 11127803813 | $3.17 | Shop at ECS Tuning | |||||
| 15 | Oil separator | 1 | 11127793164 | Shop at ECS Tuning | ||||||
| 16 | Plastic bolt | 5,0X22 | 2 | 11127790984 | Shop at ECS Tuning | |||||
| 17 | Cap for oil filler | 1 | 11127509328 | $7.78 | Shop at ECS Tuning | |||||
| 18 | Camshaft position sensor | 1 | 13627794646 | $116.05 | Shop at ECS Tuning | |||||
| 19 | O-ring | 17X2,8 | 1 | 13627796699 | $1.88 | Shop at ECS Tuning | ||||
| 20 | Plastic bolt | 5,0X19,5 | 1 | 11127805414 | $1.58 | Shop at ECS Tuning | ||||
| 21 | Socket housing | 3 POL. | 3 | 12521433916 | $2.53 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal SLK 2.8 ELA | 0,22-0,35MM² AG | 1 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | |||
| -- | Socket terminal SLK 2.8 ELA | 1,0-2,5MM² /SN | 1 | 12521433216 | $0.50 | Shop at ECS Tuning | ||||
