Timing - Timing Chain Lower P for BMW 5 Series E39 525d (2003)

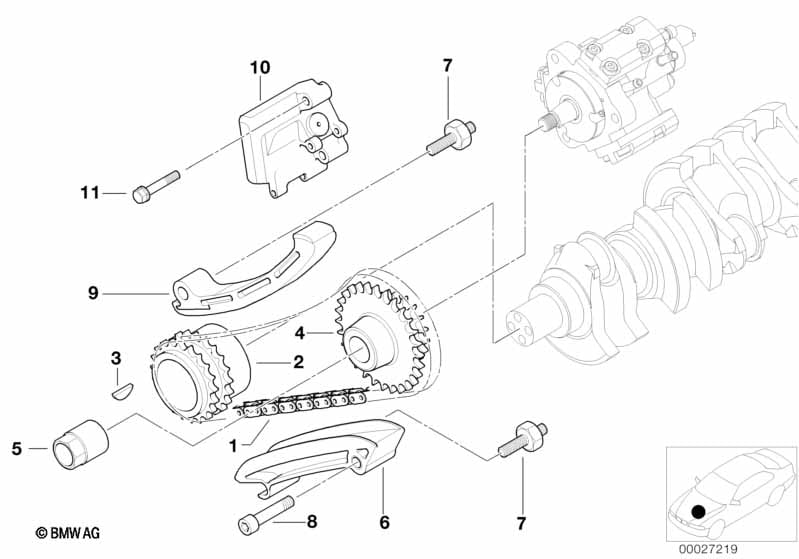

This Timing - Timing Chain Lower P technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Timing chain | 1 | 13522248729 | Shop at ECS Tuning | ||||||
| 02 | Crankshaft sprocket | 1 | 11212247303 | Shop at ECS Tuning | ||||||
| 03 | Woodruff key | 5X6.5 | 1 | 07119951480 | $0.88 | Shop at ECS Tuning | ||||
| 04 | Sprocket high-pressure pump | 1 | 13522247053 | Shop at ECS Tuning | ||||||
| 05 | Hexagon nut with collar | M14X1,5 | 1 | 13522247623 | $2.37 | Shop at ECS Tuning | ||||
| 06 | Guide rail | 1 | 13522247331 | Shop at ECS Tuning | ||||||
| 07 | Bolt | 2 | 11112247197 | $5.14 | Shop at ECS Tuning | |||||
| 08 | Fillister-head screw | 1 | 13522248291 | Shop at ECS Tuning | ||||||
| 09 | Chain tensioner | 1 | 13522247330 | Shop at ECS Tuning | ||||||
| 10 | Chain tensioner | 1 | 13522247644 | Shop at ECS Tuning | ||||||
| 11 | Hex bolt with washer | M6X30-Z1-PHR | 3 | 07119902064 | $0.45 | Shop at ECS Tuning |
