Timing and valve train-camshaft for BMW 5 Series E39 525d (2003)

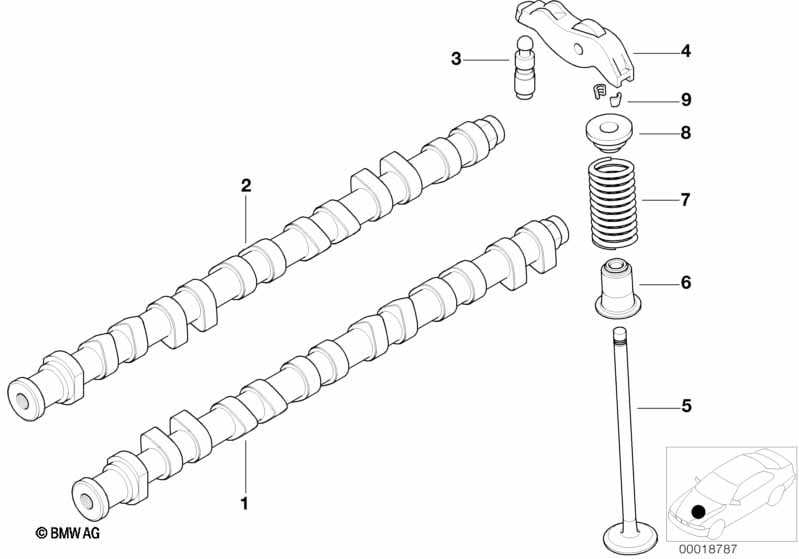

This Timing and valve train-camshaft technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Inlet camshaft | 1 | 11312246698 | Shop at ECS Tuning | ||||||
| 02 | Camshaft exhaust | 1 | 11312246699 | Shop at ECS Tuning | ||||||
| 03 | Alignment element | 24 | 11332249817 | $21.42 | Shop at ECS Tuning | |||||
| 04 | Rocker arm | 24 | 11332248878 | $33.04 | Shop at ECS Tuning | |||||
| 05 | Intake/exhaust valve | 25,9/5,92MM | 24 | 11342247077 | $24.08 | Shop at ECS Tuning | ||||
| 06 | Repair kit valve seal ring | 1 | 11349071732 | $70.17 | Shop at ECS Tuning | |||||
| 07 | Valve spring | 24 | 11342247172 | $7.88 | Shop at ECS Tuning | |||||
| 08 | Upper spring plate | 24 | 11342246523 | $3.77 | Shop at ECS Tuning | |||||
| 09 | Valve collet | D=6 | 48 | 11341461405 | $1.34 | Shop at ECS Tuning |
