Cooling system-fan/fan coupling for BMW 5 Series E39 525d (2003)

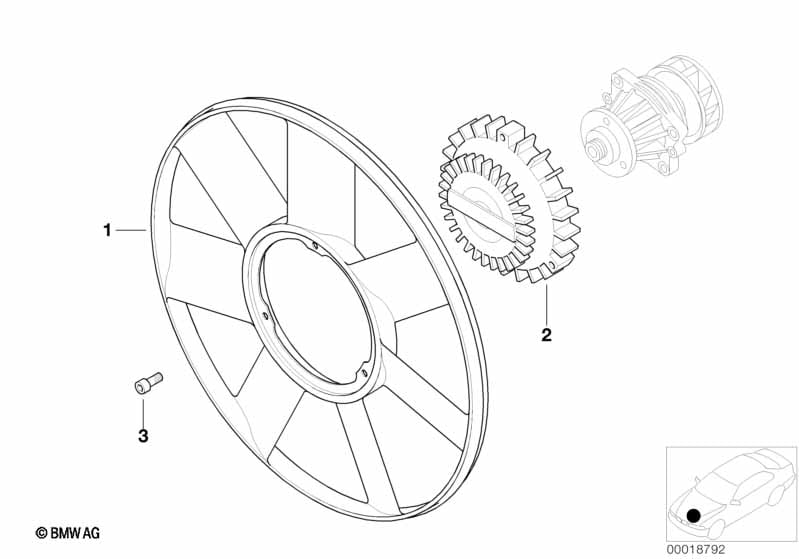

This Cooling system-fan/fan coupling technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fan 7 blade | D=420MM | 1 | 11522243303 | $71.15 | Shop at ECS Tuning | ||||
| 02 | Fan coupling | 1 | 11522249216 | $202.21 | Shop at ECS Tuning | |||||
| 03 | ISA screw | M6X16-8.8-ZNNIV | 3 | 07129905536 | $0.64 | Shop at ECS Tuning |
