Lubrication system/Oil pump with drive for BMW 5 Series E39 525i (2003)

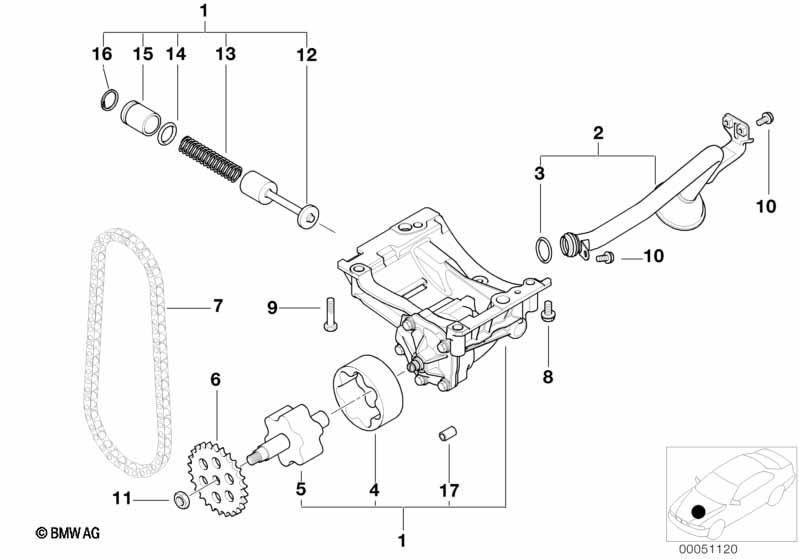

This Lubrication system/Oil pump with drive technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil pump | 1 | 11417501568 | $364.55 | +core | Shop at ECS Tuning | ||||
| 02 | Suction pipe | 1 | 11417503259 | $42.08 | Shop at ECS Tuning | |||||
| 03 | O-ring | 20,0X3 | 1 | 11417507429 | $3.27 | Shop at ECS Tuning | ||||
| 04 | Rotor,outer | 1 | 11411432731 | $14.06 | Shop at ECS Tuning | |||||
| 05 | Rotor inner | 1 | 11411432730 | $28.11 | +core | Shop at ECS Tuning | ||||
| 06 | Sprocket | 1 | 11411432737 | $19.89 | Shop at ECS Tuning | |||||
| 07 | Chain | 1 | 11417576915 | $30.08 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M8X22 | 1 | 07119905739 | $0.62 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M8X55-U1 | 3 | 07119905391 | $1.27 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M6X16-U1-8.8 | 3 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 11 | Hex nut | M10X1-LH | 1 | 07119905857 | $0.36 | Shop at ECS Tuning | ||||
| 12 | Control valve | 1 | 11411716410 | $6.84 | Shop at ECS Tuning | |||||
| 13 | Coil spring | 1 | 11417502774 | $3.50 | Shop at ECS Tuning | |||||
| 14 | O-ring | 17,0X1,8MM | 1 | 11411722837 | $1.19 | Shop at ECS Tuning | ||||
| 15 | Spacer bush | 1 | 11411703950 | $1.95 | ENDED | Shop at ECS Tuning | ||||
| 16 | Lock Ring | 21X1 | 1 | 07119934625 | $0.24 | Shop at ECS Tuning | ||||
| 17 | Dowel | 1 | 11411722839 | $1.58 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525i Lubrication system/Oil pump with drive?
- This technical diagram illustrates the Lubrication system/Oil pump with drive within the Engine group for the 5 Series E39 525i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Oil pump (Part #11417501568).
- Which models use the hardware listed in this Lubrication system/Oil pump with drive?
- The hardware and components featured in the Lubrication system/Oil pump with drive are specific to the 5 Series E39 525i produced during 2003. These technical specifications ensure that parts like the Oil pump (11417501568) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lubrication system/Oil pump with drive assembly?
- Each item in the Lubrication system/Oil pump with drive corresponds to the numbered list below the illustration. For the 5 Series E39 525i, you can identify the Oil pump by locating its position on the schematic, which then links to the official BMW part number 11417501568 for the Engine section.
