Lambda Probe Fixings for BMW 5 Series E39 525i (2003)

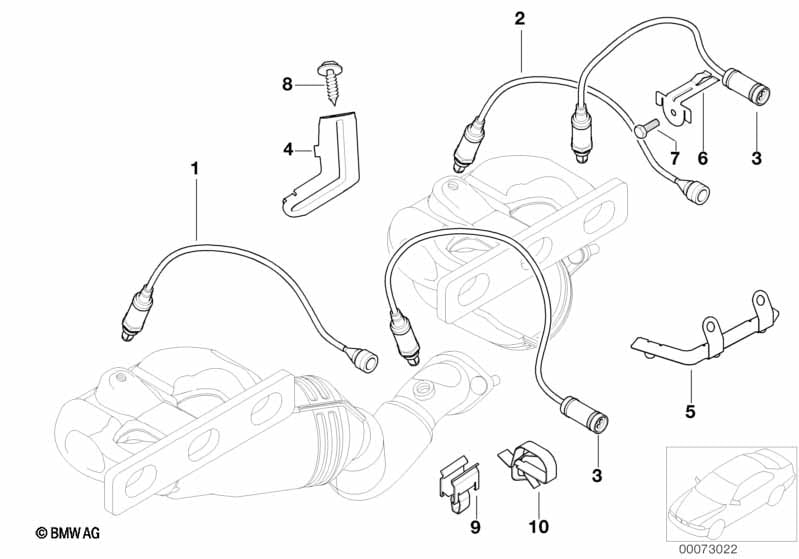

This Lambda Probe Fixings technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Regulating lambda probe | L=570MM | 2 | 11787503441 | +core | Shop at ECS Tuning | ||||
| 03 | Lambda Monitor sensor | L=990MM | 2 | 11781433940 | $215.65 | Shop at ECS Tuning | ||||
| 04 | Bracket for lambda probe cable | ZYL.1-3 | 1 | 11787503160 | Shop at ECS Tuning | |||||
| 04 | Bracket for lambda probe cable | ZYL.4-6 | 1 | 11787505318 | ENDED | Shop at ECS Tuning | ||||
| 06 | Bracket for lambda probe cable | 1 | 11787506204 | $5.84 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M6X16-8.8-ZNS3 | 1 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Sheet metal screw | ST4,8X13-F-ZNS3 | 1 | 07119901291 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Holder | 4 | 11787570482 | Shop at ECS Tuning | ||||||
| 10 | Cable holder | 4 | 11787539016 | $0.72 | Shop at ECS Tuning | |||||
| 10 | Cable clamp | 2 | 12521436023 | $0.68 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
