Belt Drive Climate Compressor for BMW 7 Series E38 730d (2001)

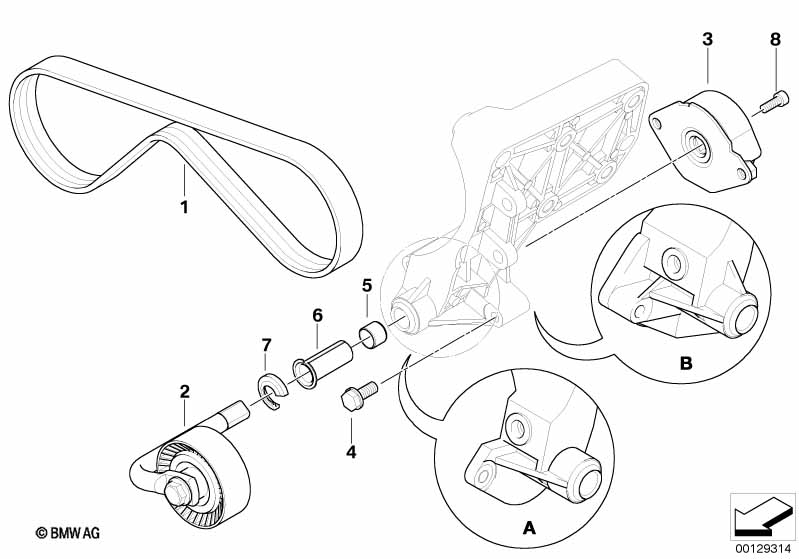

This Belt Drive Climate Compressor technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ribbed v-belt | 5 PK X 810 | 1 | 64558593211 | Shop at ECS Tuning | |||||
| 02 | Tensioning lever | 1 | 10/2000 | 64557788684 | $56.87 | Shop at ECS Tuning | ||||
| 03 | Belt tensioner | 1 | 08/1998 | 64557786076 | $49.53 | Shop at ECS Tuning | ||||
| 04 | Torx screw with collar | M7X38 | 2 | 11517789351 | Shop at ECS Tuning | |||||
| 05 | Bushing | 1 | 10/2000 | 64557788090 | Shop at ECS Tuning | |||||
| 06 | Bushing | 1 | 64557788089 | Shop at ECS Tuning | ||||||
| 07 | sealing | 1 | 11282247187 | $1.18 | Shop at ECS Tuning | |||||
| 08 | ISA screw | M6X16-8.8-ZNNIV | 1 | 07129905536 | $0.64 | Shop at ECS Tuning |
