Cylinder Head/Mounting parts for BMW 2 Series G42 220d (2025)

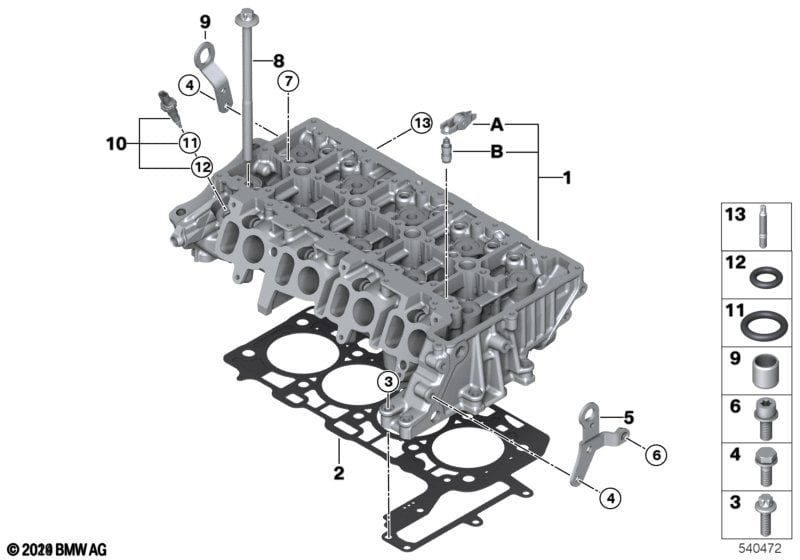

This Cylinder Head/Mounting parts technical drawing provides a detailed breakdown of the assembly for the 2 Series G42 220d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder Head | 1 | 11128580266 | Shop at ECS Tuning | ||||||
| 01 | Cylinder head with valve gear | 1 | 11121031787 | Shop at ECS Tuning | ||||||
| 02 | Cylinder head gasket | 1-LOCH | 1 | 11128594566 | Shop at ECS Tuning | |||||
| 02 | Cylinder head gasket | 2-LOCH | 1 | 11128594567 | Shop at ECS Tuning | |||||
| 02 | Cylinder head gasket | 3-LOCH | 1 | 11128594568 | Shop at ECS Tuning | |||||
| 03 | ASA-Bolt | M8X40 | 5 | 07119907475 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M8X22 | 4 | 07119905739 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Loop | 1 | 11127812885 | Shop at ECS Tuning | ||||||
| 05 | Mounting bracket | 1 | 11128472125 | NoS | Shop at ECS Tuning | |||||
| 06 | Isa screw with bush | M8X28.4-8.8-ZNN | 1 | 08/2018 | 07149886429 | Shop at ECS Tuning | ||||
| 07 | Dowel | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 08 | Set Bolt Cylinder Head | M12X1,5X200 | 1 | 11128513128 | Shop at ECS Tuning | |||||
| 09 | Loop | 1 | 11128575651 | Shop at ECS Tuning | ||||||
| 10 | Temperature sensor, coolant | 1 | 13627797957 | Shop at ECS Tuning | ||||||
| 11 | O-ring | 9,3X2,2 | 1 | 13627807006 | Shop at ECS Tuning | |||||
| 12 | O-ring | 5,6X2 | 2 | 13627807005 | Shop at ECS Tuning | |||||
| 13 | ASA-stud bolt | M7X47-10.9-PHR | 8 | 11128597830 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series G42 220d Cylinder Head/Mounting parts?
- This technical diagram illustrates the Cylinder Head/Mounting parts within the Engine group for the 2 Series G42 220d produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Cylinder Head (Part #11128580266).
- Which models use the hardware listed in this Cylinder Head/Mounting parts?
- The hardware and components featured in the Cylinder Head/Mounting parts are specific to the 2 Series G42 220d produced during 2025. These technical specifications ensure that parts like the Cylinder Head (11128580266) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cylinder Head/Mounting parts assembly?
- Each item in the Cylinder Head/Mounting parts corresponds to the numbered list below the illustration. For the 2 Series G42 220d, you can identify the Cylinder Head by locating its position on the schematic, which then links to the official BMW part number 11128580266 for the Engine section.
