Vacuum control-AGR for BMW 5 Series G30 520d (2020)

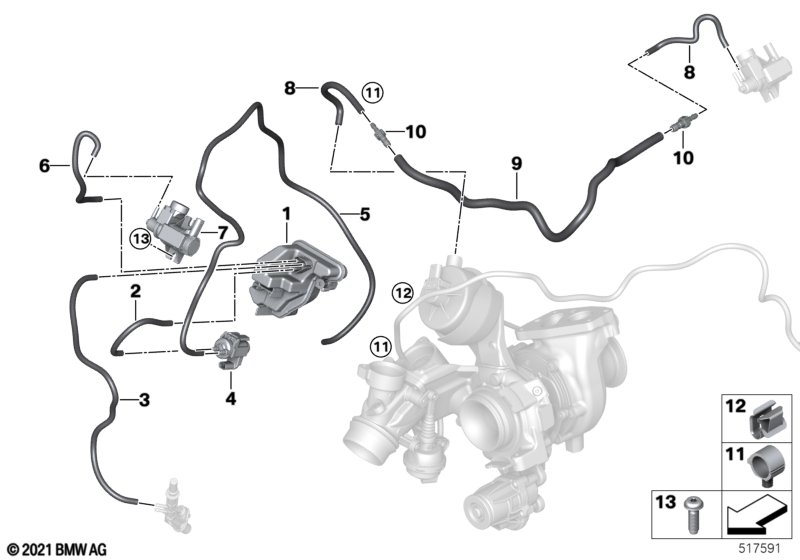

This Vacuum control-AGR technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vacuum reservoir | 1 | 11658581292 | Shop at ECS Tuning | ||||||
| 02 | Vacuum hose black | 3,5X2,0 | X | 11747797129 | $17.14 | Shop at ECS Tuning | ||||
| 03 | Vacuum hose black | 3,5X2,0 | X | 11747797129 | $17.14 | Shop at ECS Tuning | ||||
| 04 | Electr.valve | 1 | 11748570591 | Shop at ECS Tuning | ||||||
| 05 | Vacuum hose white | 3,5X2,0 | X | 11658507249 | Shop at ECS Tuning | |||||
| 06 | Vacuum hose black | 3,5X2,0 | X | 11747797129 | $17.14 | Shop at ECS Tuning | ||||
| 07 | Pressure converter | 1 | 11658589117 | Shop at ECS Tuning | ||||||
| 08 | Vacuum hose blue | 3,5X2,0 | X | 11657796879 | $16.43 | Shop at ECS Tuning | ||||
| 09 | Vacuum hose blue | L=600MM | 1 | 11657824937 | Shop at ECS Tuning | |||||
| 10 | Connection piece | D3.5/D5.5 | 2 | 11657926091 | Shop at ECS Tuning | |||||
| 11 | Clip retainer | 2 | 12517577343 | Shop at ECS Tuning | ||||||
| 12 | Clip | 1 | 12521437136 | $0.63 | Shop at ECS Tuning | |||||
| 13 | Screw | 6X20 | 2 | 07129907489 | Shop at ECS Tuning |
