Oil supply exhaust turbocharger for BMW 3 Series G20 Sedan 320d (2020)

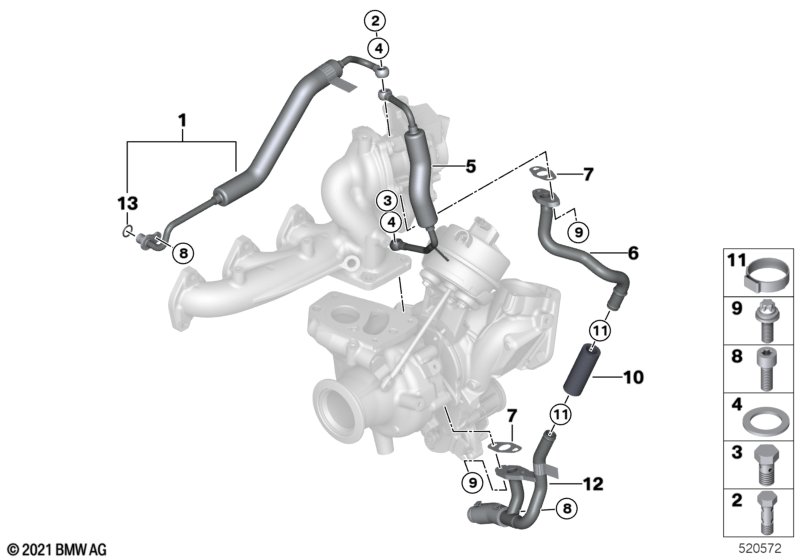

This Oil supply exhaust turbocharger technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil pipe | 1 | 11428586483 | Shop at ECS Tuning | ||||||
| 02 | Hollow bolt | M10X1X30 | 1 | 11427792255 | Shop at ECS Tuning | |||||
| 03 | Hollow bolt | M10X1-ZNNIV SI | 1 | 07119907291 | Shop at ECS Tuning | |||||
| 04 | Sealing ring | 5 | 11427100363 | NoS | Shop at ECS Tuning | |||||
| 05 | Oil pipe | 1 | 11428586485 | Shop at ECS Tuning | ||||||
| 06 | Return pipe | 1 | 11428586484 | Shop at ECS Tuning | ||||||
| 07 | Gasket Asbestos Free | 2 | 11427925922 | Shop at ECS Tuning | ||||||
| 08 | ISA screw | M6X16-8.8-ZNNIV | 2 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 09 | ASA-Bolt | BM6X16-ZNNIV SI | 4 | 07119907573 | Shop at ECS Tuning | |||||
| 10 | Hose | 1 | 11422249206 | Shop at ECS Tuning | ||||||
| 11 | Clamp | 2 | 11428580697 | Shop at ECS Tuning | ||||||
| 12 | Return pipe | 1 | 11428586486 | Shop at ECS Tuning | ||||||
| 13 | O-ring | 9,7X1,5MM | 1 | 11537610049 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Sedan 320d Oil supply exhaust turbocharger?
- This technical diagram illustrates the Oil supply exhaust turbocharger within the Engine group for the 3 Series G20 Sedan 320d produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Oil pipe (Part #11428586483).
- Which models use the hardware listed in this Oil supply exhaust turbocharger?
- The hardware and components featured in the Oil supply exhaust turbocharger are specific to the 3 Series G20 Sedan 320d produced during 2020. These technical specifications ensure that parts like the Oil pipe (11428586483) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Oil supply exhaust turbocharger assembly?
- Each item in the Oil supply exhaust turbocharger corresponds to the numbered list below the illustration. For the 3 Series G20 Sedan 320d, you can identify the Oil pipe by locating its position on the schematic, which then links to the official BMW part number 11428586483 for the Engine section.
