Turbocharger with exhaust manifold for BMW 3 Series G20 Sedan LCI 330i (2025)

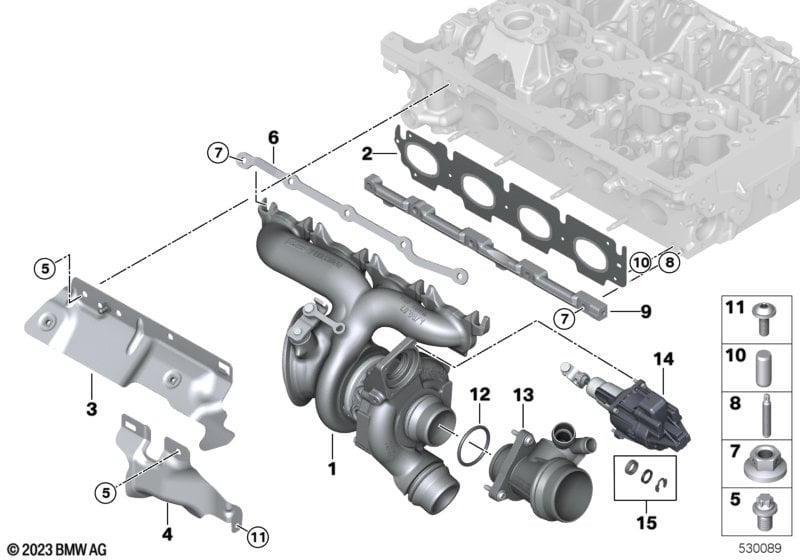

This Turbocharger with exhaust manifold technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.

Turbocharger with exhaust manifold
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Exhaust technology C6B RDE
and
Additional contents rde
S1DDA=No

S1DZA=No
Do not use turbocharger additive SN
2457276 for Korea vehicles!
01 RP exhaust turbocharger w/exh.manifold 1 11658662073 Shop at ECS Tuning
only in conjunction with
-- Turbolader additive diesel/gasoline 17ML 1 83195B305D6 Shop at ECS Tuning
-- Repair kit, E-controller 1 11655A7A286 Shop at ECS Tuning
02 Gasket for exhaust manifold 1 11628642774 Shop at ECS Tuning
03 Heat shield for exhaust manifold 1 11658632101 Shop at ECS Tuning
04 Heat shield 1 11658632102 Shop at ECS Tuning
05 Star-socket screw M8X16-8.8-ZNS3 3 07119907332 Shop at ECS Tuning
06 Sliding bar 1 11628642775 Shop at ECS Tuning
07 Flange nut M7 10 11628597827 Shop at ECS Tuning
08 ASA-stud bolt M7X47-10.9-PHR 10 11127647711 Shop at ECS Tuning
09 Terminal strip 1 11628678770 Shop at ECS Tuning
10 Dowel pin 4X16MM 2 07119942082 Shop at ECS Tuning
11 Fillister head screw M6X16 8.8 1 51119907273 Shop at ECS Tuning
14 Set Wastegate valve actuator 1 11658691853 Shop at ECS Tuning
Observe service solution 20000779619991.
15 Repair kit, E-controller 1 11655A7A286 Shop at ECS Tuning
