Engine Block Mounting Parts for BMW 7 Series G12 LCI 740Li (2022)

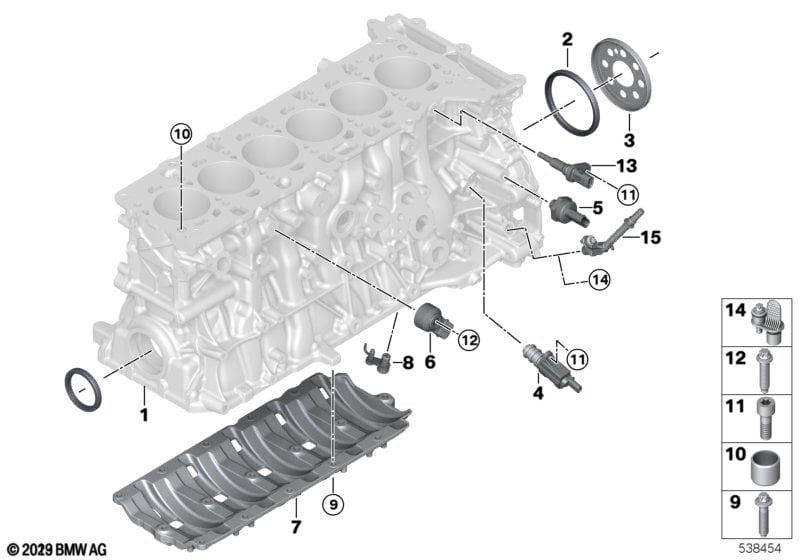

This Engine Block Mounting Parts technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 LCI 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shaft seal | 55X68X8 | 1 | 11118664905 | Shop at ECS Tuning | |||||
| 02 | Shaft seal | 90X104X9MM | 1 | 11148664904 | Shop at ECS Tuning | |||||
| 03 | Reluctor | 1 | 11148605104 | Shop at ECS Tuning | ||||||
| 04 | Solenoid valve (SOLV) | 1 | 11417639993 | Shop at ECS Tuning | ||||||
| 05 | Oil pressure sensor | M10 | 1 | 12618647488 | Shop at ECS Tuning | |||||
| 06 | Ping Sensor | 2 | 13627636937 | Shop at ECS Tuning | ||||||
| 07 | Oil deflector | 1 | 11138487141 | Shop at ECS Tuning | ||||||
| 08 | Oil Spraying Nozzle | 6 | 11427634186 | Shop at ECS Tuning | ||||||
| 09 | ASA-Bolt | M8X35 | 16 | 11418612615 | Shop at ECS Tuning | |||||
| 10 | Dowel | D=14,5MM | 2 | 11112245180 | $1.65 | Shop at ECS Tuning | ||||
| 11 | Fillister-head screw | M6X18-10.9-ZNS3 | 2 | 07119906651 | Shop at ECS Tuning | |||||
| 12 | Star-socket screw | BM8X30-8.8 ZNS3 | 2 | 13629907870 | Shop at ECS Tuning | |||||
| 13 | Component temperature sensor | 1 | 13628661436 | Shop at ECS Tuning | ||||||
| 14 | Cover lid | 1 | 11668471789 | Shop at ECS Tuning |
