Cylinder Head/Mounting parts for BMW 6 Series G32 GT 630iX (2020)

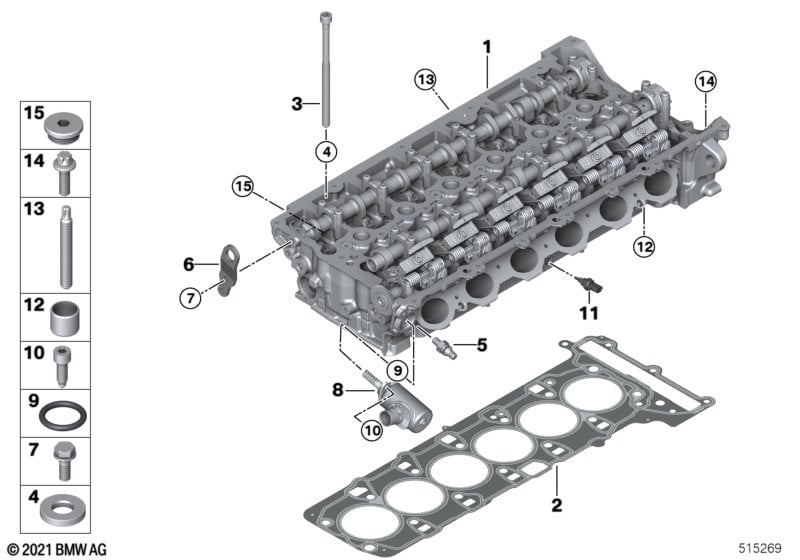

This Cylinder Head/Mounting parts technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT 630iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder head with valve gear | 1 | 11127934494 | Shop at ECS Tuning | ||||||
| 02 | Cylinder head gasket | 0,81MM | 1 | 11127934583 | Shop at ECS Tuning | |||||
| 02 | Cylinder head gasket | 1,11MM (+0,3) | 1 | 11127934584 | Shop at ECS Tuning | |||||
| 03 | Cylinder head bolt | M11X188 | 14 | 11128644674 | Shop at ECS Tuning | |||||
| 04 | Washer | 14 | 11127583138 | $6.05 | Shop at ECS Tuning | |||||
| 05 | Air-discharge fitting with O-ring | 1 | 11128626622 | Shop at ECS Tuning | ||||||
| 06 | Loop | 1 | 11127638711 | Shop at ECS Tuning | ||||||
| 07 | Hex bolt with washer | M8X22 | 2 | 07119905739 | $0.62 | Shop at ECS Tuning | ||||
| 08 | Actuator | 1 | 11377643073 | Shop at ECS Tuning | ||||||
| 09 | Shaft seal | 1 | 11378662525 | Shop at ECS Tuning | ||||||
| 10 | ISA screw | M6X16-8.8-ZNNIV | 2 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 11 | Temperature sensor coolant / oil | 1 | 13627580635 | Shop at ECS Tuning | ||||||
| 12 | Dowel | D=14,5MM | 2 | 11112245180 | $1.65 | Shop at ECS Tuning | ||||
| 13 | ASA-stud bolt | M7X47-10.9-PHR | 4 | 11127647711 | Shop at ECS Tuning | |||||
| 14 | ASA-Bolt | M8X40 | 5 | 07119907475 | Shop at ECS Tuning | |||||
| 15 | Screw plug | M28X1.5 | 5 | 11128697732 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Thread lock, medium-strength | 10ML | 6 | 83192210339 | Shop at ECS Tuning | |||||
