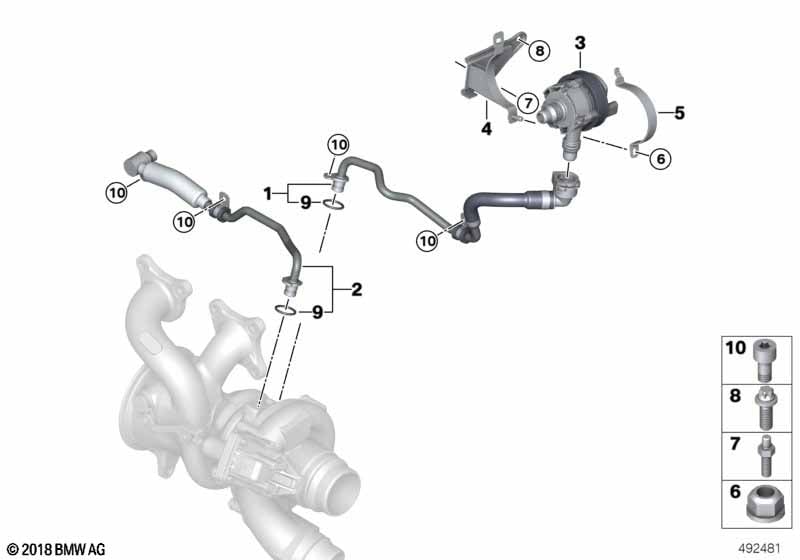

Engine cooling system exhaust turbo. for BMW 7 Series G12 LCI 740Li (2022)
This Engine cooling system exhaust turbo. technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 LCI 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Coolant return line | 1 | 11538650087 | Shop at ECS Tuning | ||||||
| For vehicles with Emissions standard EU6 rde II |
S1DFA=No |
|||||||||
| 02 | Coolant feed line | 1 | 11538650086 | Shop at ECS Tuning | ||||||
| For vehicles with Emissions standard EU6 rde II |
S1DFA=Yes |
|||||||||
| 02 | Coolant feed line | 1 | 11539454981 | Shop at ECS Tuning | ||||||
| 03 | Auxiliary water pump | 1 | 11518651287 | Shop at ECS Tuning | ||||||
| 04 | Bracket for electric water pump | 1 | 11517935183 | Shop at ECS Tuning | ||||||
| 05 | Support | 1 | 11518482297 | Shop at ECS Tuning | ||||||
| 06 | Hex nut | AM6-8-ZNNIV SI | 1 | 07129905471 | $0.64 | Shop at ECS Tuning | ||||
| 07 | Screw | M6 8.8 ZNNIV-SI | 1 | 11518652138 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 09 | O-ring | 12X1,5 | 3 | 11277702625 | Shop at ECS Tuning | |||||
| 10 | ISA screw | M6X12-8.8-ZNNIV | 4 | 07129905867 | Shop at ECS Tuning | |||||
