Oil supply exhaust turbocharger for BMW 3 Series G20 Sedan LCI 330i (2025)

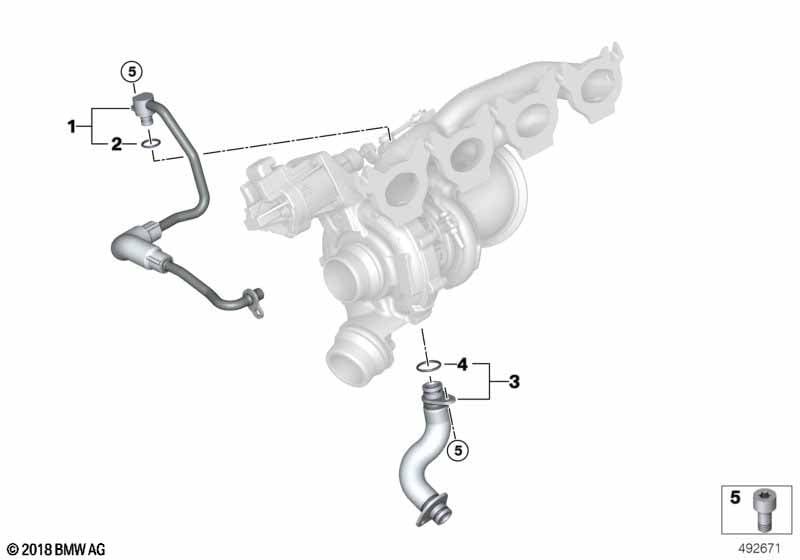

This Oil supply exhaust turbocharger technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Exhaust technology C6B RDE and Additional contents rde |
S1DDA=No S1DZA=No |
||||||||
| 01 | Oil supply line | 1 | 11428629969 | Shop at ECS Tuning | ||||||
| 02 | O-ring | 9,7X1,5MM | 2 | 11537610049 | Shop at ECS Tuning | |||||
| 03 | Oil return line | 1 | 11428629970 | Shop at ECS Tuning | ||||||
| 04 | O-ring | 16X2MM | 2 | 11428604872 | Shop at ECS Tuning | |||||
| 05 | ISA screw | M6X12-8.8-ZNNIV | 4 | 07129905867 | Shop at ECS Tuning | |||||
