Engine Block Mounting Parts for BMW 3 Series G20 Sedan 330eX (2020)

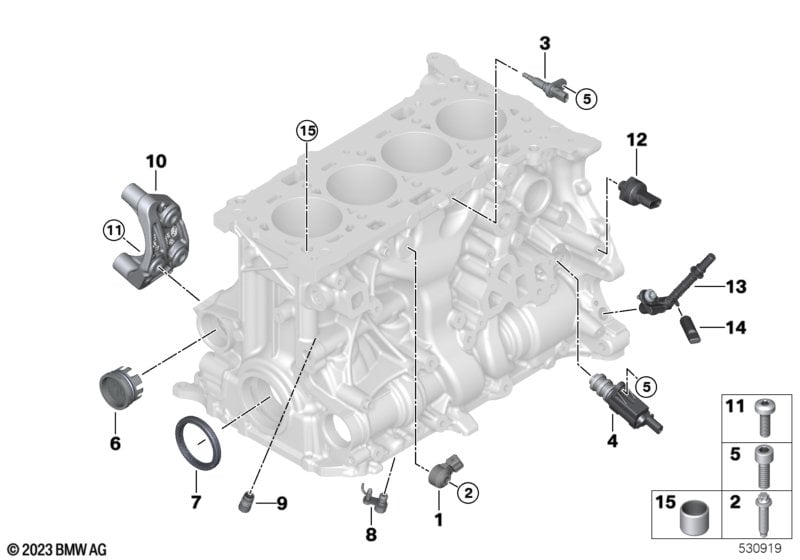

This Engine Block Mounting Parts technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ping Sensor | 2 | 13627636937 | Shop at ECS Tuning | ||||||
| 02 | Star-socket screw | BM8X30-8.8 ZNS3 | 2 | 13629907870 | Shop at ECS Tuning | |||||
| 03 | Component temperature sensor | 1 | 13628661436 | Shop at ECS Tuning | ||||||
| 04 | Solenoid valve (SOLV) | 1 | 11417639993 | Shop at ECS Tuning | ||||||
| 05 | Fillister-head screw | M6X18-10.9-ZNS3 | 1 | 07119906651 | Shop at ECS Tuning | |||||
| 06 | End cover with gasket | 2 | 11117797932 | Shop at ECS Tuning | ||||||
| 07 | Shaft seal | 55X68X8 | 1 | 11118664905 | Shop at ECS Tuning | |||||
| 08 | Oil Spraying Nozzle | 4 | 11427634186 | Shop at ECS Tuning | ||||||
| 09 | non-return valve | 1 | 11128591869 | Shop at ECS Tuning | ||||||
| 12 | Oil pressure sensor | M10 | 1 | 12618647488 | Shop at ECS Tuning | |||||
| 13 | non-return valve | 1 | 11667620923 | Shop at ECS Tuning | ||||||
| 14 | Cap | 1 | 11667803829 | Shop at ECS Tuning | ||||||
| 15 | Dowel | D=14,5MM | 2 | 11112245180 | $1.65 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Sedan 330eX Engine Block Mounting Parts?
- This technical diagram illustrates the Engine Block Mounting Parts within the Engine group for the 3 Series G20 Sedan 330eX produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Ping Sensor (Part #13627636937).
- Which models use the hardware listed in this Engine Block Mounting Parts?
- The hardware and components featured in the Engine Block Mounting Parts are specific to the 3 Series G20 Sedan 330eX produced during 2020. These technical specifications ensure that parts like the Ping Sensor (13627636937) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine Block Mounting Parts assembly?
- Each item in the Engine Block Mounting Parts corresponds to the numbered list below the illustration. For the 3 Series G20 Sedan 330eX, you can identify the Ping Sensor by locating its position on the schematic, which then links to the official BMW part number 13627636937 for the Engine section.
