Cylinder head cover/Mounting parts for BMW 3 Series G20 Sedan LCI M340i (2024)

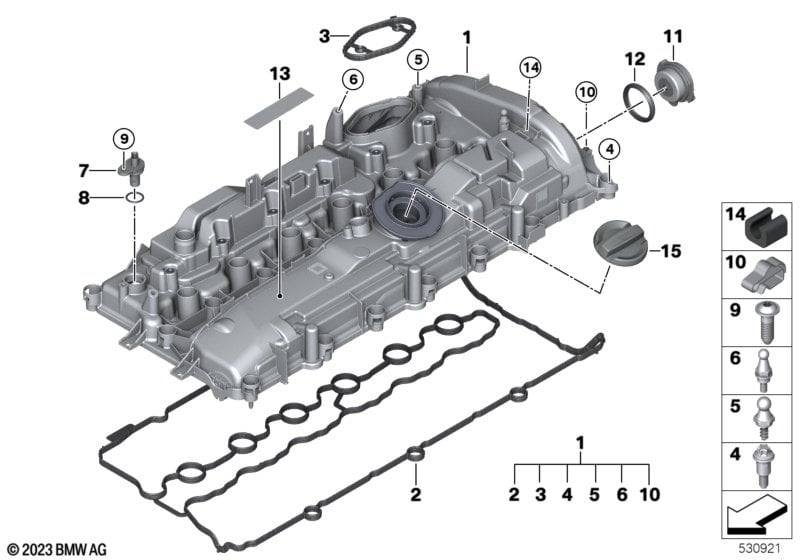

This Cylinder head cover/Mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI M340i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cyl.head cover w/o pressure ctrl.valve | 1 | 06/2024 | 11128691779 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Retaining pin | 1 | 06/2024 | 11127643221 | Shop at ECS Tuning | |||||
| 02 | Gasket set, cylinder head cover | 1 | 11129894803 | Shop at ECS Tuning | ||||||
| 03 | Profile-gasket | 1 | 11128638246 | Shop at ECS Tuning | ||||||
| 04 | Collar screw | M6X30 | 21 | 11129454322 | Shop at ECS Tuning | |||||
| 04 | Collar screw | M6X65 | 1 | 11129453984 | Shop at ECS Tuning | |||||
| 05 | Ball pin | 1 | 11127593207 | Shop at ECS Tuning | ||||||
| 06 | Retaining pin | 1 | 11127643221 | Shop at ECS Tuning | ||||||
| 07 | Camshaft position sensor | 2 | 13627633958 | Shop at ECS Tuning | ||||||
| 08 | O-ring | 18,2X2,5 | 2 | 13628658854 | Shop at ECS Tuning | |||||
| 09 | Torx-bolt for plastic material | TS5X20 | 2 | 07119907480 | Shop at ECS Tuning | |||||
| 10 | Fixing clamp | 4 | 11128642177 | Shop at ECS Tuning | ||||||
| 11 | Actuator, VANOS | 2 | 11367614288 | Shop at ECS Tuning | ||||||
| 12 | Seal | 2 | 11365A65AB5 | Shop at ECS Tuning | ||||||
| 13 | Sign ignition coil/ fuel | 1 | 71228656625 | ENDED | Shop at ECS Tuning | |||||
| 14 | Damper rubber | 1 | 13537639983 | Shop at ECS Tuning | ||||||
| 15 | Cap for oil filler | 1 | 11128654637 | Shop at ECS Tuning | ||||||
| 15 | Cap for oil filler | 1 | 11121028899 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
