Cooling system-coolant pump for BMW 7 Series G12 LCI 745Le (2022)

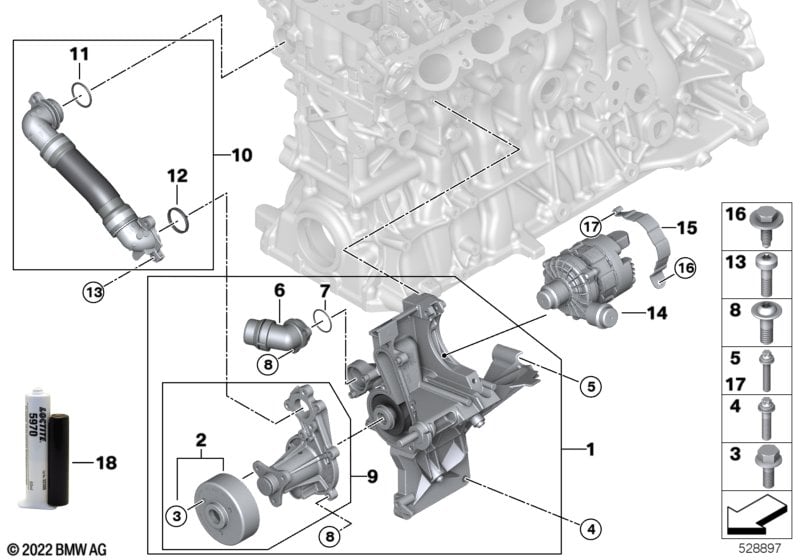

This Cooling system-coolant pump technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 LCI 745Le. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Coolant pump with support | 1 | 11518742075 | Shop at ECS Tuning | ||||||
| 02 | Belt pulley, coolant pump | 1 | 11518663674 | Shop at ECS Tuning | ||||||
| 03 | Hex bolt | M6X16-8.8-ZNS3 | 3 | 07119904371 | $0.16 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Thread lock, medium-strength | 10ML | 1 | 83192210339 | Shop at ECS Tuning | |||||
| 04 | Star-socket screw | M8X35 | 7 | 07119907865 | Shop at ECS Tuning | |||||
| 05 | Star-socket screw | M6X30 | 1 | 11519908732 | Shop at ECS Tuning | |||||
| 06 | Connector | 1 | 11519489804 | Shop at ECS Tuning | ||||||
| 07 | O-ring | NW26 | 1 | 11518482256 | Shop at ECS Tuning | |||||
| 08 | Countersunk screw | M6X20 | 7 | 11518482252 | Shop at ECS Tuning | |||||
| 09 | Coolant pump, mechanical | 1 | 11519489805 | Shop at ECS Tuning | ||||||
| 10 | Line from coolant pump-cylinder head | 1 | 11538650983 | Shop at ECS Tuning | ||||||
| 11 | O-ring | 28,7X2,5 | 1 | 11538674931 | Shop at ECS Tuning | |||||
| 12 | Gasket | 29,8X4,6X2,2 | 1 | 11538678045 | Shop at ECS Tuning | |||||
| 13 | Countersunk screw | M6X20-8.8-ZNNIV | 5 | 07119907517 | Shop at ECS Tuning | |||||
| 14 | Auxiliary water pump | 1 | 11515A30246 | Shop at ECS Tuning | ||||||
| 15 | Support | 1 | 11517935182 | Shop at ECS Tuning | ||||||
| 16 | Hex bolt | M6X16 ZNS3 | 1 | 07119905577 | Shop at ECS Tuning | |||||
| 17 | Star-socket screw | M6X30 | 1 | 11519908732 | Shop at ECS Tuning | |||||
| 18 | Loctite 5970 liquid sealant | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
