Exhaust turbocharger heat shield for BMW 4 Series G26 Gran Coupé M440iX (2024)

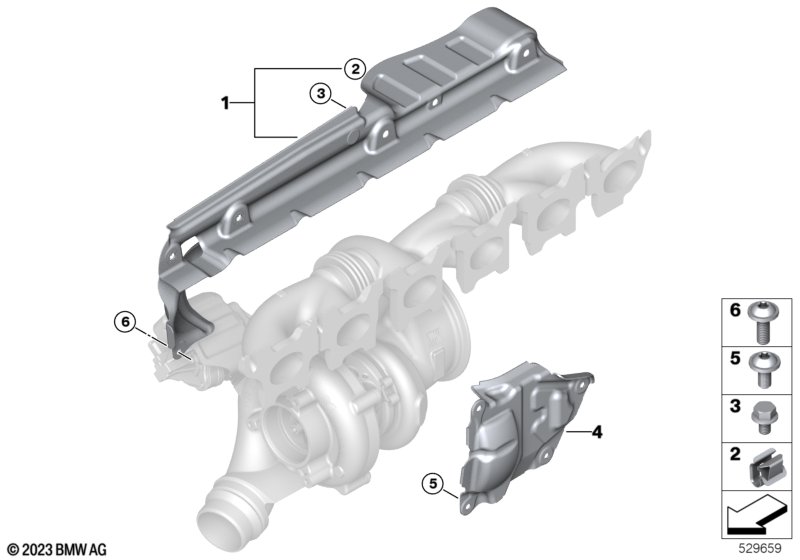

This Exhaust turbocharger heat shield technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé M440iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heat shield exhaust turbocharger | 1 | 11655B480B1 | NoS | Shop at ECS Tuning | |||||
| 02 | Clip | 2 | 12521437136 | $0.63 | Shop at ECS Tuning | |||||
| Four are required for installation and removal. |
||||||||||
| 03 | Hex bolt | M8X16-8.8-ZNS3 | 2 | 07119904124 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Heat shield, turbocharger, lower | 1 | 11655B480B0 | NoS | Shop at ECS Tuning | |||||
| 05 | Torx bolt | ISA M6X12 | 4 | 07129907197 | Shop at ECS Tuning | |||||
| 06 | Fillister head screw | M6X16 8.8 | 1 | 51119907273 | Shop at ECS Tuning | |||||
