Intake manifold system for BMW 3 Series G28 Sedan LCI 325Li (2025)

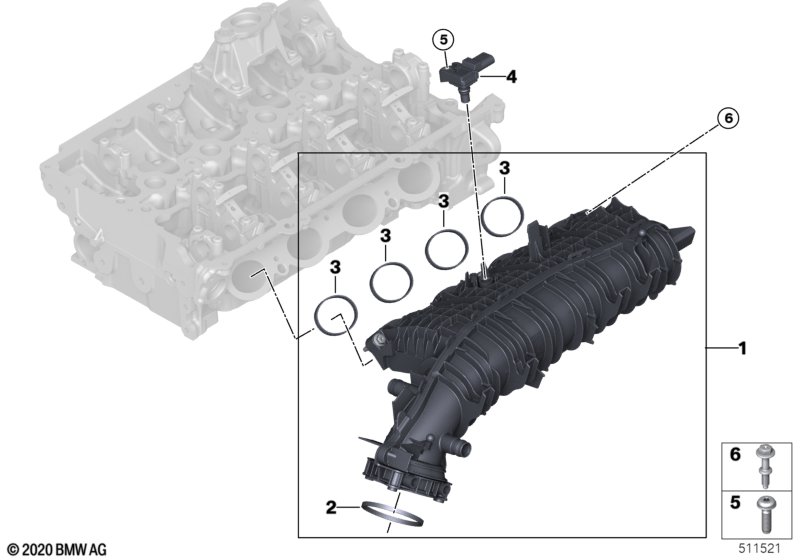

This Intake manifold system technical drawing provides a detailed breakdown of the assembly for the 3 Series G28 Sedan LCI 325Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Energy recovery system |
S1CEA=No |
||||||||
| 01 | Intake manifold system | 1 | 11618655869 | Shop at ECS Tuning | ||||||
| 02 | Gasket, throttle body | 1 | 11617633558 | Shop at ECS Tuning | ||||||
| 03 | Seal for intake system | 4 | 11618487500 | Shop at ECS Tuning | ||||||
| 04 | T-map sensor | 2,5BAR | 1 | 13628637899 | Shop at ECS Tuning | |||||
| 05 | Screw | 6X20 | 1 | 07129907489 | Shop at ECS Tuning | |||||
| 06 | Fastening elements | M6X33,5MM | 5 | 07148490195 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G28 Sedan LCI 325Li Intake manifold system?
- This technical diagram illustrates the Intake manifold system within the Engine group for the 3 Series G28 Sedan LCI 325Li produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Intake manifold system (Part #11618655869).
- Which models use the hardware listed in this Intake manifold system?
- The hardware and components featured in the Intake manifold system are specific to the 3 Series G28 Sedan LCI 325Li produced during 2025. These technical specifications ensure that parts like the Intake manifold system (11618655869) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Intake manifold system assembly?
- Each item in the Intake manifold system corresponds to the numbered list below the illustration. For the 3 Series G28 Sedan LCI 325Li, you can identify the Intake manifold system by locating its position on the schematic, which then links to the official BMW part number 11618655869 for the Engine section.
