Exhaust turbocharger with lubrication for BMW 3 Series G20 Sedan 330e (2020)

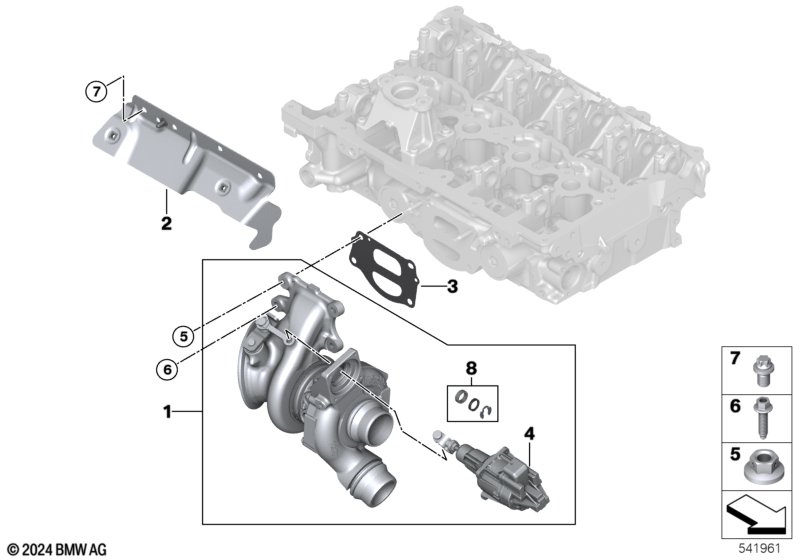

This Exhaust turbocharger with lubrication technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Do not use turbocharger additive SN 2457276 for Korea vehicles! |
||||||||||
| 01 | RP exhaust turbocharger | 1 | 11658662071 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Turbolader additive diesel/gasoline | 17ML | 1 | 83195B305D6 | Shop at ECS Tuning | |||||
| -- | Repair kit, E-controller | 1 | 11655A7A286 | Shop at ECS Tuning | ||||||
| 02 | Heat shield exhaust turbocharger | 1 | 11658647243 | Shop at ECS Tuning | ||||||
| 03 | Exhaust manifold/turbocharger gasket | 1 | 11658631900 | Shop at ECS Tuning | ||||||
| 04 | Set Wastegate valve actuator | 1 | 11658691853 | Shop at ECS Tuning | ||||||
| 05 | Flange nut | M7 | 2 | 11628597827 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M7X27 | 2 | 03/2022 | 11658623438 | Shop at ECS Tuning | ||||
| 07 | Star-socket screw | M8X16-8.8-ZNS3 | 2 | 07119907332 | Shop at ECS Tuning | |||||
| Observe service solution 20000779619991. | ||||||||||
| 08 | Repair kit, E-controller | 1 | 11655A7A286 | Shop at ECS Tuning | ||||||
