Cylinder head cover/Mounting parts for BMW 3 Series G20 Sedan LCI 330e (2025)

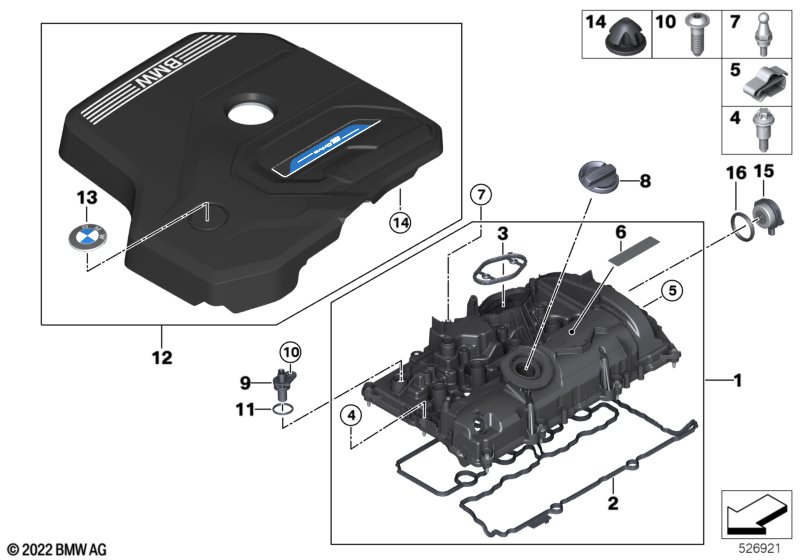

This Cylinder head cover/Mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder head cover | 1 | 11129452895 | Shop at ECS Tuning | ||||||
| 02 | Gasket set, cylinder head cover | 1 | 11129797205 | Shop at ECS Tuning | ||||||
| 03 | Profile-gasket | 1 | 11127617411 | Shop at ECS Tuning | ||||||
| 04 | Collar screw | M6X30 | 14 | 11129454322 | Shop at ECS Tuning | |||||
| 04 | Collar screw | M6X65 | 1 | 11129453984 | Shop at ECS Tuning | |||||
| 05 | Fixing clamp | 4 | 11128642177 | Shop at ECS Tuning | ||||||
| 06 | Sign ignition coil/ fuel | 1 | 71228656625 | ENDED | Shop at ECS Tuning | |||||
| 07 | Retaining pin | 1 | 11127643221 | Shop at ECS Tuning | ||||||
| 08 | Cap for oil filler | 1 | 11128654637 | Shop at ECS Tuning | ||||||
| 08 | Cap for oil filler | 1 | 11121028899 | Shop at ECS Tuning | ||||||
| 09 | Camshaft position sensor | 2 | 13627633958 | Shop at ECS Tuning | ||||||
| 10 | Torx-bolt for plastic material | TS5X20 | 2 | 07119907480 | Shop at ECS Tuning | |||||
| 11 | O-ring | 18,2X2,5 | 2 | 13628658854 | Shop at ECS Tuning | |||||
| 12 | Engine cover | 1 | 11148676204 | Shop at ECS Tuning | ||||||
| 13 | BMW emblem | 1 | 11147788967 | $11.26 | Shop at ECS Tuning | |||||
| 14 | Bump stop | 4 | 11127614138 | Shop at ECS Tuning | ||||||
| 15 | Actuator, VANOS | 2 | 11367614288 | Shop at ECS Tuning | ||||||
| 16 | Seal | 2 | 11365A65AB5 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Sedan LCI 330e Cylinder head cover/Mounting parts?
- This technical diagram illustrates the Cylinder head cover/Mounting parts within the Engine group for the 3 Series G20 Sedan LCI 330e produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Cylinder head cover (Part #11129452895).
- Which models use the hardware listed in this Cylinder head cover/Mounting parts?
- The hardware and components featured in the Cylinder head cover/Mounting parts are specific to the 3 Series G20 Sedan LCI 330e produced during 2025. These technical specifications ensure that parts like the Cylinder head cover (11129452895) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cylinder head cover/Mounting parts assembly?
- Each item in the Cylinder head cover/Mounting parts corresponds to the numbered list below the illustration. For the 3 Series G20 Sedan LCI 330e, you can identify the Cylinder head cover by locating its position on the schematic, which then links to the official BMW part number 11129452895 for the Engine section.
