V-space bridge for BMW 7 Series G11 LCI 750iX (2022)

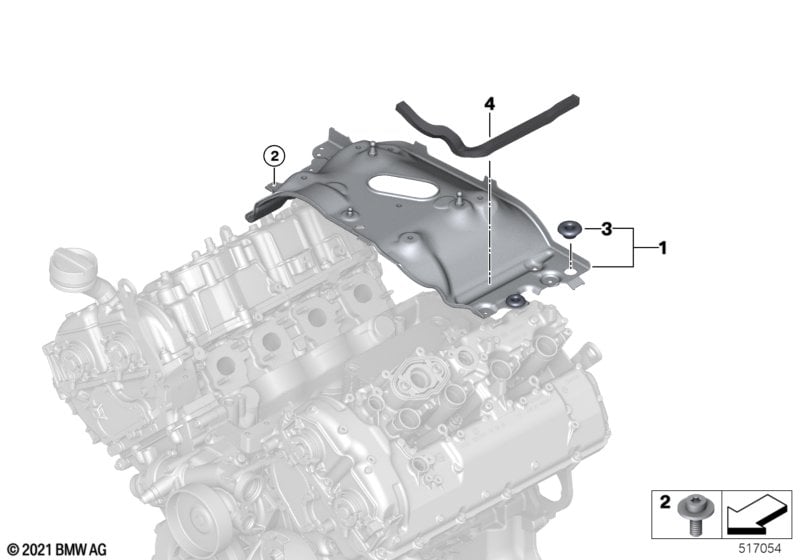

This V-space bridge technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 LCI 750iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Emissions standard EU6 rde II |
S1DFA=Yes |
|||||||||
| 01 | Retaining bridge | RDE2 | 1 | 11159454592 | Shop at ECS Tuning | |||||
| For vehicles with Emissions standard EU6 rde II |
S1DFA=No |
|||||||||
| 01 | Retaining bridge | 1 | 11158697282 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Foam seal | 1 | 11155A379F6 | Shop at ECS Tuning | ||||||
| 02 | ISA screw | M6X16-U2-8.8-ZN | 4 | 07129906916 | Shop at ECS Tuning | |||||
| 03 | Grommet | 2 | 64126910076 | $1.50 | Shop at ECS Tuning | |||||
| 04 | Foam seal | 1 | 11155A379F6 | Shop at ECS Tuning | ||||||
