Cylinder head cover/Mounting parts for BMW 2 Series F45 Active Tourer LCI 225i (2019)

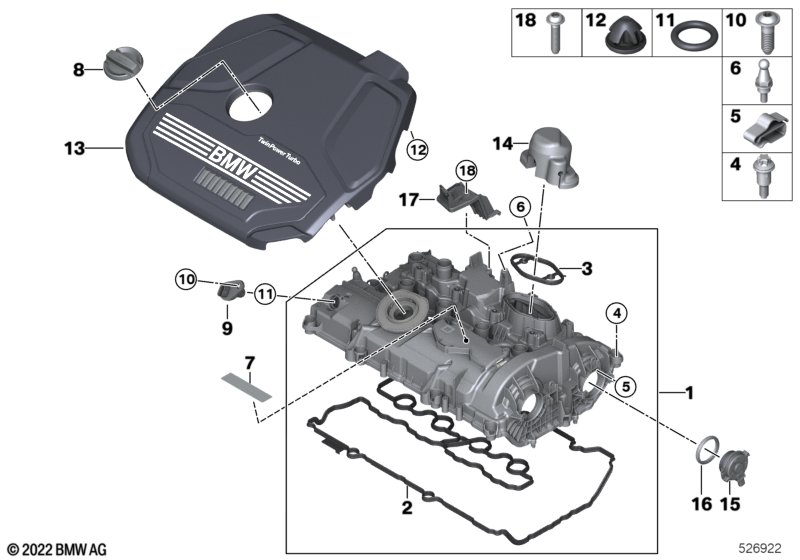

This Cylinder head cover/Mounting parts technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer LCI 225i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder head cover | 1 | 11121020868 | Shop at ECS Tuning | ||||||
| 02 | Gasket set, cylinder head cover | 1 | 11129797225 | Shop at ECS Tuning | ||||||
| 03 | Profile-gasket | 1 | 11129454030 | Shop at ECS Tuning | ||||||
| 04 | Collar screw | M6X30 | 10 | 11129454322 | Shop at ECS Tuning | |||||
| 05 | Fixing clamp | 2 | 11127648915 | Shop at ECS Tuning | ||||||
| 05 | Fixing clamp | 2 | 11128642177 | Shop at ECS Tuning | ||||||
| 06 | Retaining pin | 1 | 11127643221 | Shop at ECS Tuning | ||||||
| 07 | Sign ignition coil/ fuel | 1 | 71228656625 | ENDED | Shop at ECS Tuning | |||||
| 08 | Cap for oil filler | 1 | 11128654637 | Shop at ECS Tuning | ||||||
| 08 | Cap for oil filler | 1 | 11121028899 | Shop at ECS Tuning | ||||||
| 09 | Camshaft position sensor | 2 | 13627633958 | Shop at ECS Tuning | ||||||
| 10 | Torx-bolt for plastic material | TS5X20 | 2 | 07119907480 | Shop at ECS Tuning | |||||
| 11 | O-ring | 18,2X2,5 | 2 | 13628658854 | Shop at ECS Tuning | |||||
| 12 | Damper rubber | 1 | 13537639983 | Shop at ECS Tuning | ||||||
| 13 | Engine cover | 1 | 11148656447 | Shop at ECS Tuning | ||||||
| 14 | Cover for high-pressure pump | 1 | 03/2020 | 11148672164 | Shop at ECS Tuning | |||||
| 14 | Cover for high-pressure pump | 1 | 11/2020 | 11145A1AB45 | Shop at ECS Tuning | |||||
| 14 | Cover for high-pressure pump | 1 | 11148483903 | Shop at ECS Tuning | ||||||
| 15 | Actuator, VANOS | 2 | 11367614288 | Shop at ECS Tuning | ||||||
| 16 | Seal | 2 | 11365A65AB5 | Shop at ECS Tuning | ||||||
| 17 | Holder | 1 | 11789468748 | Shop at ECS Tuning | ||||||
| 18 | Fillister head screw | 1 | 07149272649 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
