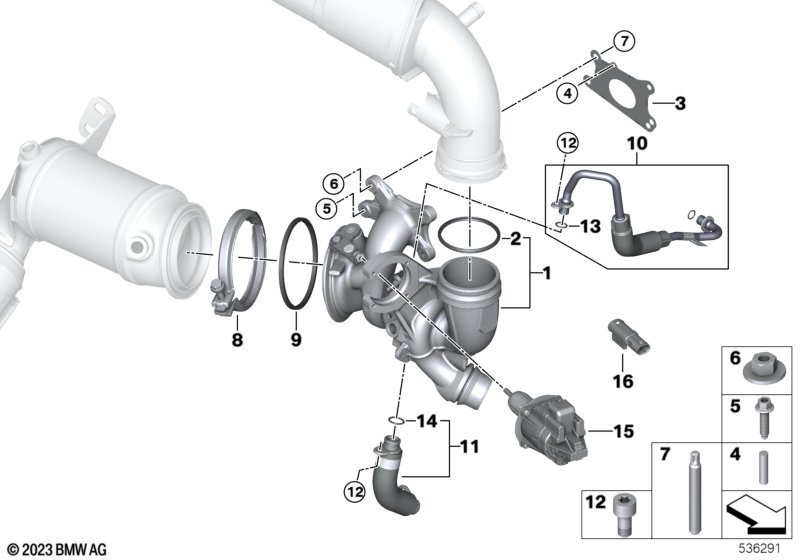

Exhaust turbocharger with lubrication for BMW MINI F56 LCI Cooper (2024)
This Exhaust turbocharger with lubrication technical drawing provides a detailed breakdown of the assembly for the MINI F56 LCI Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Exhaust technology C6B RDE or Emissions standard EU6 rde II or Additional contents rde |
S1DDA=Yes S1DFA=Yes S1DZA=Yes |
||||||||
| Do not use turbocharger additive SN 2457276 for Korea vehicles! Note the repair instructions, modified turbocharger |
||||||||||
| 01 | Exhaust turbocharger | 1 | 11659844623 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Turbolader additive diesel/gasoline | 17ML | 1 | 83195B305D6 | Shop at ECS Tuning | |||||
| -- | Dummy plug | 2-POLIG | 1 | 61137678400 | Shop at ECS Tuning | |||||
| 02 | Preformed seal | 1 | 11617796622 | $6.65 | Shop at ECS Tuning | |||||
| 03 | Seal exhaust turbocharger | 1 | 11628631898 | Shop at ECS Tuning | ||||||
| 04 | Dowel pin | 4X16MM | 2 | 07119942082 | Shop at ECS Tuning | |||||
| 05 | Hexagon bolt | M7X30 | 2 | 03/2022 | 07145A5C6A9 | Shop at ECS Tuning | ||||
| 06 | Flange nut | M7 | 2 | 11628597827 | Shop at ECS Tuning | |||||
| 07 | ASA-stud bolt | M7X58 | 2 | 11127638700 | Shop at ECS Tuning | |||||
| 08 | Screw clamp | 1 | 18307606136 | Shop at ECS Tuning | ||||||
| 09 | Gasket ring | 1 | 18307581970 | Shop at ECS Tuning | ||||||
| 10 | Oil supply line | 1 | 11428629962 | Shop at ECS Tuning | ||||||
| 11 | Oil return line | 1 | 11428629958 | Shop at ECS Tuning | ||||||
| 12 | ISA screw | M6X12-8.8-ZNNIV | 4 | 07129905867 | Shop at ECS Tuning | |||||
| 13 | O-ring | 9,7X1,5MM | 2 | 11537610049 | Shop at ECS Tuning | |||||
| 14 | O-ring | 16X2MM | 2 | 11428604872 | Shop at ECS Tuning | |||||
| 15 | Set Wastegate valve actuator | 1 | 11658687477 | Shop at ECS Tuning | ||||||
| 16 | Dummy plug | 2-POLIG | 1 | 61137678400 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI F56 LCI Cooper Exhaust turbocharger with lubrication?
- This technical diagram illustrates the Exhaust turbocharger with lubrication within the Engine group for the MINI F56 LCI Cooper produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Exhaust turbocharger (Part #11659844623).
- Which models use the hardware listed in this Exhaust turbocharger with lubrication?
- The hardware and components featured in the Exhaust turbocharger with lubrication are specific to the MINI F56 LCI Cooper produced during 2024. These technical specifications ensure that parts like the Exhaust turbocharger (11659844623) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exhaust turbocharger with lubrication assembly?
- Each item in the Exhaust turbocharger with lubrication corresponds to the numbered list below the illustration. For the MINI F56 LCI Cooper, you can identify the Exhaust turbocharger by locating its position on the schematic, which then links to the official BMW part number 11659844623 for the Engine section.
