Oil pan/oil level indicator for BMW 4 Series G22 Coupé M440dX (2023)

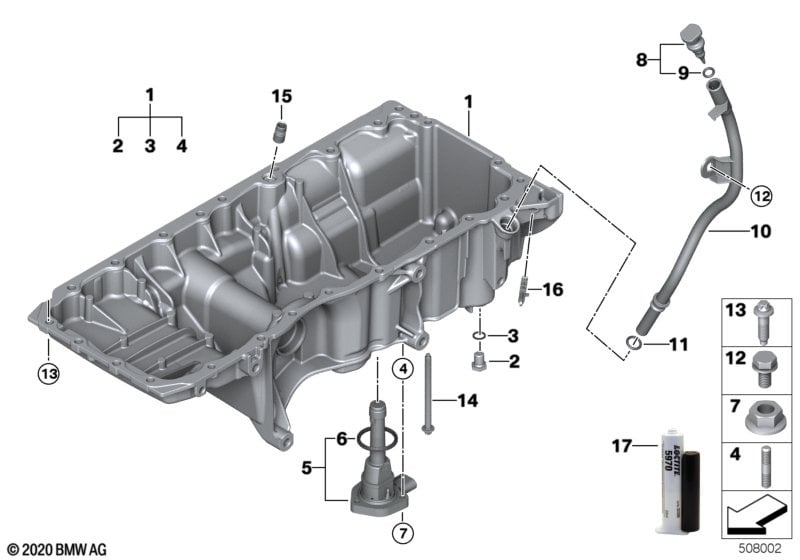

This Oil pan/oil level indicator technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé M440dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil Pan | 1 | 11138595463 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Loctite 5970 liquid sealant | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
| 02 | Screw plug | M12X16 | 1 | 11137535106 | $3.68 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | A12X16-CU | 1 | 07119963132 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Stud bolt | M6X30-ZNNIV SI | 3 | 07129904544 | $1.42 | Shop at ECS Tuning | ||||
| 05 | Oil levelling sensor | 1 | 08/2023 | 12615A14C01 | ENDED | Shop at ECS Tuning | ||||
| 05 | Oil levelling sensor | 1 | 12615A740A3 | Shop at ECS Tuning | ||||||
| 06 | Gasket | 1 | 12619454471 | Shop at ECS Tuning | ||||||
| 07 | Hex nut with plate | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 08 | Dipstick | 1 | 11438490292 | Shop at ECS Tuning | ||||||
| 09 | O-ring | 9X2,2 | 2 | 11431717666 | $0.73 | Shop at ECS Tuning | ||||
| 10 | Guide tube | 1 | 11438490286 | Shop at ECS Tuning | ||||||
| 11 | O-ring | 14X3 | 1 | 11437794698 | $1.19 | Shop at ECS Tuning | ||||
| 12 | Hex bolt with washer | M8X16 | 1 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 13 | ASA-Bolt | M8X30 | 22 | 11138592611 | Shop at ECS Tuning | |||||
| 14 | Torx bolt | M8X110 | 2 | 11137800625 | Shop at ECS Tuning | |||||
| 15 | non-return valve | 1 | 11128591869 | Shop at ECS Tuning | ||||||
| 16 | Blind plug | 1 | 11117536143 | $0.67 | Shop at ECS Tuning | |||||
| 17 | Loctite 5970 liquid sealant | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
