Intake manifold AGR with flap control for BMW 3 Series G21 Touring LCI M340dX (2024)

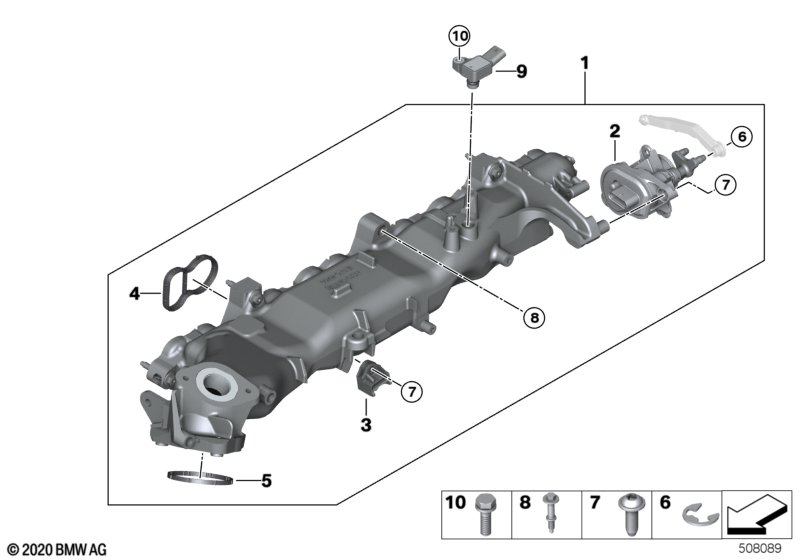

This Intake manifold AGR with flap control technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring LCI M340dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake manifold AGR with flap control | 1 | 07/2021 | 11617926141 | Shop at ECS Tuning | |||||
| 02 | Adjuster unit | 1 | 11618477109 | Shop at ECS Tuning | ||||||
| 03 | Holder | 1 | 11617925799 | Shop at ECS Tuning | ||||||
| 04 | Profile-gasket | 6 | 11618477111 | Shop at ECS Tuning | ||||||
| 05 | Gasket, throttle body | 1 | 11619888561 | Shop at ECS Tuning | ||||||
| 06 | Lock Ring | 1 | 11619888562 | Shop at ECS Tuning | ||||||
| 07 | Oval head screw | M5X20-8.8-ZNNIV | 4 | 11617925788 | Shop at ECS Tuning | |||||
| 08 | Fastening elements | M6X36,5 | 7 | 07148490193 | Shop at ECS Tuning | |||||
| 09 | Pressure sensor | 1 | 13629885466 | Shop at ECS Tuning | ||||||
| 10 | Hex bolt with washer | M6X20 | 1 | 07119904527 | $0.44 | Shop at ECS Tuning |
