Vacuum line for brake booster for BMW 3 Series G21 Touring LCI M340dX (2024)

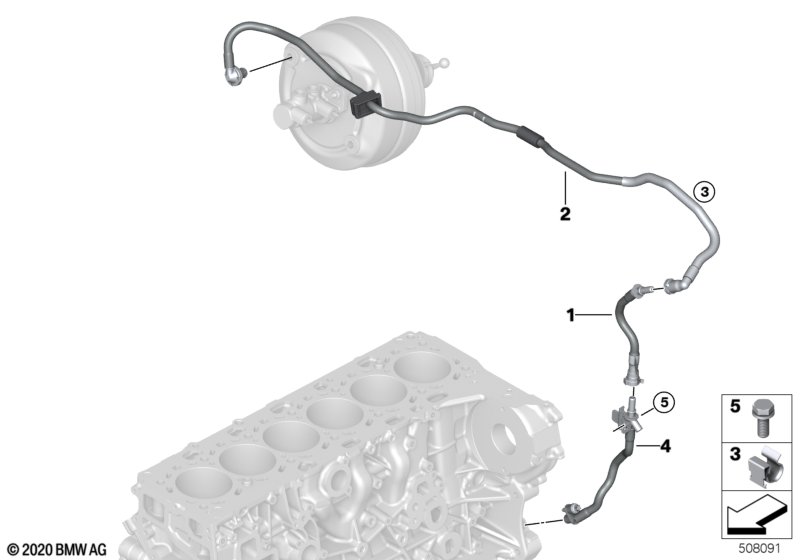

This Vacuum line for brake booster technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring LCI M340dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vacuum pipe | 1 | 11668599234 | Shop at ECS Tuning | ||||||
| 02 | Vacuum pipe | 1 | 11668664527 | Shop at ECS Tuning | ||||||
| 03 | Fixing clamp | D=12-14/B=5 | 3 | 12527578321 | $1.08 | Shop at ECS Tuning | ||||
| 04 | non-return valve | 1 | 11668599233 | Shop at ECS Tuning | ||||||
| 05 | Hex bolt with washer | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning |
