Oil supply exhaust turbocharger for BMW 7 Series G12 LCI 740LdX (2022)

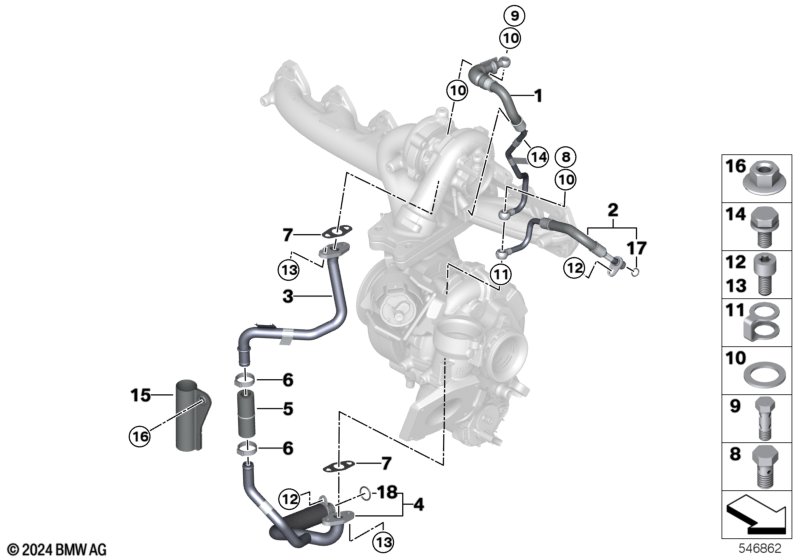

This Oil supply exhaust turbocharger technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 LCI 740LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| If applicable, observe the new repair instructions in AIR. |
||||||||||
| 01 | Oil feed line exhaust turbocharger | 1 | 11425A76559 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Twin sealing ring | 10X15 CU | 1 | 11423465991 | Shop at ECS Tuning | |||||
| -- | Sealing ring | 1 | 11427100363 | Shop at ECS Tuning | ||||||
| 02 | Oil feed line exhaust turbocharger | 1 | 11425A76560 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Twin sealing ring | 10X15 CU | 1 | 11423465991 | Shop at ECS Tuning | |||||
| -- | Sealing ring | 1 | 11427100363 | Shop at ECS Tuning | ||||||
| 03 | Exhaust turbocharger oil return line | 1 | 11428596251 | Shop at ECS Tuning | ||||||
| 04 | Exhaust turbocharger oil return line | 1 | 03/2023 | 11428596252 | Shop at ECS Tuning | |||||
| 05 | Hose | 1 | 11428479930 | Shop at ECS Tuning | ||||||
| 06 | Clamp | 2 | 11428580697 | Shop at ECS Tuning | ||||||
| 07 | Gasket Asbestos Free | 2 | 11427925922 | Shop at ECS Tuning | ||||||
| 08 | Hollow bolt | M10X1X30 | 1 | 11427792255 | Shop at ECS Tuning | |||||
| 09 | Hollow bolt | M10X1-ZNNIV SI | 1 | 07119907291 | Shop at ECS Tuning | |||||
| 10 | Sealing ring | 1 | 11427100363 | NoS | Shop at ECS Tuning | |||||
| If applicable, observe the new repair instructions in AIR. |
||||||||||
| 11 | Twin sealing ring | 10X15 CU | 1 | 11423465991 | Shop at ECS Tuning | |||||
| 12 | ISA screw | M6X16-8.8-ZNNIV | 2 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 13 | ASA-Bolt | BM6X16-ZNNIV SI | 4 | 07119907573 | Shop at ECS Tuning | |||||
| 14 | Hex bolt with washer | M6X12-U1-8.8 | 1 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 15 | Heat protection mat | 1 | 11427925675 | Shop at ECS Tuning | ||||||
| 16 | Self-locking hex nut | M6 | 1 | 07146982742 | $0.38 | Shop at ECS Tuning | ||||
| 17 | O-ring | 9,5X1,6MM | 1 | 11427824735 | Shop at ECS Tuning | |||||
| 18 | O-ring | 16X2MM | 1 | 11428604872 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
