Engine acoustics for BMW 1 Series F40 120d (2024)

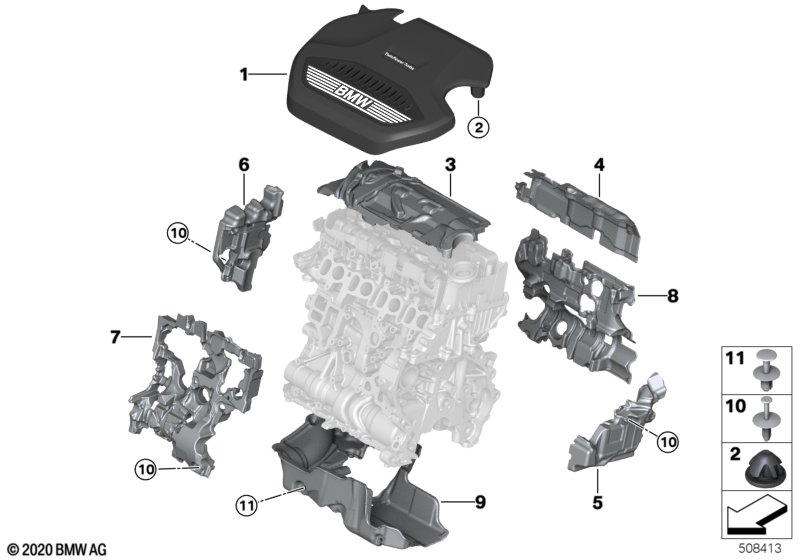

This Engine acoustics technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 120d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with CO2 package and vehicles produced from 03/01/2021 |
S1CBA=Yes |
||||||||
| 01 | Engine cover | 1 | 11148579535 | Shop at ECS Tuning | ||||||
| 02 | Bump stop | 4 | 11127614138 | Shop at ECS Tuning | ||||||
| 03 | Cover, acoustic | 1 | 11148580373 | Shop at ECS Tuning | ||||||
| 04 | Cover, acoustic, cylinder head cover | 1 | 11148580021 | Shop at ECS Tuning | ||||||
| 05 | Acoustic cover rear | 1 | 11148490415 | Shop at ECS Tuning | ||||||
| 06 | Acoustic cover front | 1 | 11148490418 | Shop at ECS Tuning | ||||||
| 07 | Acoustic cover left | 1 | 11148580020 | ENDED | Shop at ECS Tuning | |||||
| 07 | Acoustic cover left | 1 | 11148490417 | Shop at ECS Tuning | ||||||
| 08 | Acoustic cover, right | 1 | 11148580019 | ENDED | Shop at ECS Tuning | |||||
| 08 | Acoustic cover, right | 1 | 11149887703 | Shop at ECS Tuning | ||||||
| 09 | Cover, acoustic | 1 | 11148580084 | Shop at ECS Tuning | ||||||
| 10 | Expanding rivet | 4 | 51118174185 | $0.30 | Shop at ECS Tuning | |||||
| 11 | Expanding rivet | D = 8MM | 3 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
