Intake manifold AGR with flap control for BMW 5 Series G30 LCI 523dX (2023)

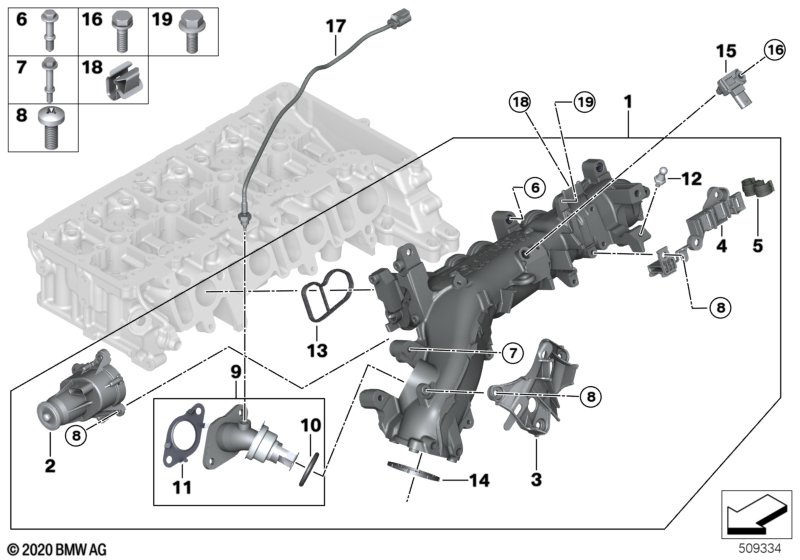

This Intake manifold AGR with flap control technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 523dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version Korea |
L802A=Yes |
||||||||
| 01 | Intake manifold AGR with flap control | 1 | 11617925777 | Shop at ECS Tuning | ||||||
| 02 | Adjuster unit | 1 | 11618570791 | Shop at ECS Tuning | ||||||
| 03 | Holder | 1 | 11617925800 | Shop at ECS Tuning | ||||||
| 04 | Holder | 1 | 11617925801 | Shop at ECS Tuning | ||||||
| 05 | Wiring clip, triple | 1 | 13537823414 | Shop at ECS Tuning | ||||||
| 06 | Fastening elements | M6X36,5 | 6 | 07148490193 | Shop at ECS Tuning | |||||
| 07 | Fastening elements | M6X45,5 | 2 | 07148490196 | Shop at ECS Tuning | |||||
| 08 | Oval head screw | M6X20 MK | 9 | 35217685343 | $1.93 | Shop at ECS Tuning | ||||
| 09 | Pipe | RDE | 1 | 11618597073 | Shop at ECS Tuning | |||||
| 10 | O-ring | 1 | 11618512681 | Shop at ECS Tuning | ||||||
| 11 | Gasket Steel | 1 | 11618597075 | Shop at ECS Tuning | ||||||
| 12 | Ball pin | 2 | 13717507180 | Shop at ECS Tuning | ||||||
| 13 | Profile-gasket | 4 | 11/2023 | 11617822216 | ENDED | Shop at ECS Tuning | ||||
| 13 | Profile-gasket | 4 | 11618571001 | Shop at ECS Tuning | ||||||
| 14 | Gasket, throttle body | 1 | 11619888561 | Shop at ECS Tuning | ||||||
| 15 | Sensor, charge-air pressure | 1 | 13628637896 | Shop at ECS Tuning | ||||||
| 16 | Hex bolt with washer | M6X20 | 1 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 17 | EGR temperature sensor | L=440MM | 1 | 13628507628 | Shop at ECS Tuning | |||||
| 18 | Clip | 1 | 12521437136 | $0.63 | Shop at ECS Tuning | |||||
| 19 | Hex bolt | M5X20 | 1 | 07119904398 | Shop at ECS Tuning | |||||
