Cylinder Head/Mounting parts for BMW 4 Series G22 Coupé 430dX (2024)

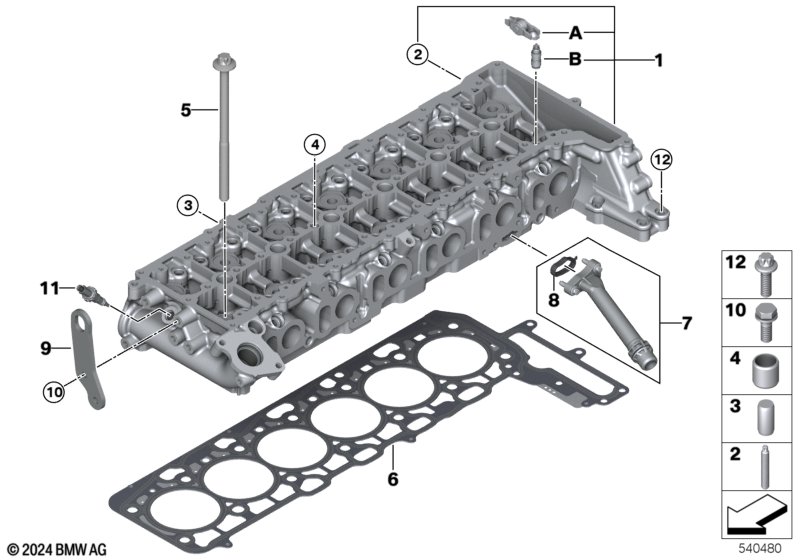

This Cylinder Head/Mounting parts technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé 430dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder Head | 1 | 11121024414 | ENDED | Shop at ECS Tuning | |||||
| 01 | Cylinder head with valve gear | 1 | 11121031805 | Shop at ECS Tuning | ||||||
| 02 | ASA-stud bolt | M7X47-10.9-PHR | 14 | 11128597830 | Shop at ECS Tuning | |||||
| 03 | Dowel pin | 8X18 | 1 | 07119942527 | Shop at ECS Tuning | |||||
| 04 | Dowel | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 05 | Set Bolt Cylinder Head | M12X1,5X200 | 1 | 11128513130 | Shop at ECS Tuning | |||||
| 06 | Cylinder head gasket | 1-LOCH | 1 | 11128598507 | Shop at ECS Tuning | |||||
| 06 | Cylinder head gasket | 2-LOCH | 1 | 11128598508 | Shop at ECS Tuning | |||||
| 06 | Cylinder head gasket | 3-LOCH | 1 | 11128598509 | Shop at ECS Tuning | |||||
| 07 | Heater return connector | 1 | 11128599636 | Shop at ECS Tuning | ||||||
| 08 | Profile-gasket | 1 | 11118475667 | Shop at ECS Tuning | ||||||
| 09 | Loop | 1 | 11128598523 | Shop at ECS Tuning | ||||||
| 10 | Hex bolt with washer | M8X22 | 2 | 07119905739 | $0.62 | Shop at ECS Tuning | ||||
| 11 | Temperature sensor, coolant | 1 | 13627797957 | Shop at ECS Tuning | ||||||
| 12 | ASA-Bolt | M8X40 | 5 | 07119907475 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G22 Coupé 430dX Cylinder Head/Mounting parts?
- This technical diagram illustrates the Cylinder Head/Mounting parts within the Engine group for the 4 Series G22 Coupé 430dX produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Cylinder Head (Part #11121024414).
- Which models use the hardware listed in this Cylinder Head/Mounting parts?
- The hardware and components featured in the Cylinder Head/Mounting parts are specific to the 4 Series G22 Coupé 430dX produced during 2024. These technical specifications ensure that parts like the Cylinder Head (11121024414) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cylinder Head/Mounting parts assembly?
- Each item in the Cylinder Head/Mounting parts corresponds to the numbered list below the illustration. For the 4 Series G22 Coupé 430dX, you can identify the Cylinder Head by locating its position on the schematic, which then links to the official BMW part number 11121024414 for the Engine section.
