Crankcase-Ventilation for BMW 7 Series G12 LCI 730Ld (2022)

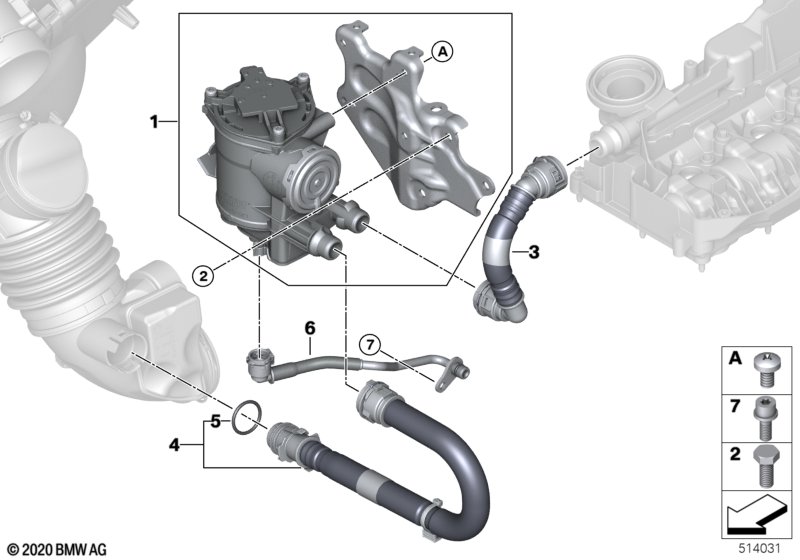

This Crankcase-Ventilation technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 LCI 730Ld. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.

Crankcase-Ventilation
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil separator 1 02/2021 11157925785 Shop at ECS Tuning
only in conjunction with
-- Oil return line 1 02/2021 11157925787 Shop at ECS Tuning
only applies to
-- Oil return line X 02/2021 11157925787 Shop at ECS Tuning
02 Hex bolt with washer M8X18-U1-8.8 4 07119905529 $0.96 Shop at ECS Tuning
03 Blow-by pipe 1 11158598287 Shop at ECS Tuning
For vehicles with
Cold-climate version
S842A=Yes
04 Blow-by pipe, heated 1 11158598289 Shop at ECS Tuning
For vehicles with
Cold-climate version
S842A=No
04 Blow-by pipe 1 11158598288 Shop at ECS Tuning
For vehicles with
Cold-climate version
S842A=Yes
05 O-ring 25,4X3,53 1 13718473145 Shop at ECS Tuning
For vehicles with
Cold-climate version
S842A=No
05 O-ring 26,5X3 1 11158479497 Shop at ECS Tuning
06 Oil return line 1 02/2021 11157925787 Shop at ECS Tuning
only applies to
-- Oil separator X 02/2021 11157925785 Shop at ECS Tuning
07 Torx-bolt with washer M6X16-8.8-ZNNIV 1 07129904819 $0.38 Shop at ECS Tuning
