Crankshaft with bearing shells for BMW 3 Series G21 Touring LCI 330dX (2025)

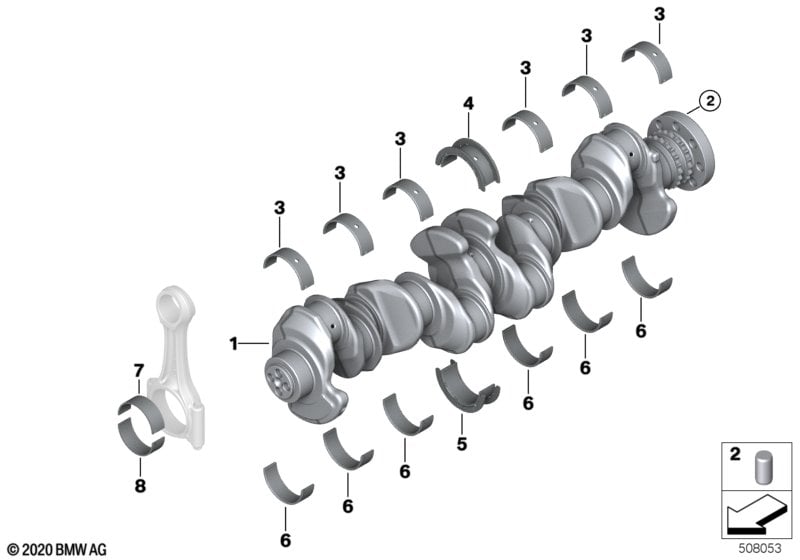

This Crankshaft with bearing shells technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring LCI 330dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Crankshaft | 1 | 11217100203 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Pin | 8X14 | 1 | 11217797978 | Shop at ECS Tuning | |||||
| 02 | Pin | 8X14 | 1 | 11217797978 | Shop at ECS Tuning | |||||
| 03 | Bearing shell 1 (blue) | 55,00MM (0) | 6 | 11218490921 | Shop at ECS Tuning | |||||
| 03 | Bearing shell 2 (green) | 55,00MM (0) | 6 | 11218490922 | Shop at ECS Tuning | |||||
| 03 | Bearing shell 3 (brown) | 55,00MM (0) | 6 | 11218490923 | Shop at ECS Tuning | |||||
| 04 | Guide bearing shell 1 (blue) | 55,00 MM (0) | 1 | 11217926107 | Shop at ECS Tuning | |||||
| 04 | Guide bearing shell 2 (green) | 55,00 MM (0) | 1 | 11217926108 | Shop at ECS Tuning | |||||
| 04 | Guide bearing shell 3 (brown) | 55,00 MM (0) | 1 | 11217926109 | Shop at ECS Tuning | |||||
| 05 | Guide bearing shell 1 (blue) | 55,00MM(0) | 1 | 11218588662 | Shop at ECS Tuning | |||||
| 05 | Guide bearing shell 2 (green) | 55,00MM(0) | 1 | 11218588663 | Shop at ECS Tuning | |||||
| 05 | Guide bearing shell 3 (brown) | 55,00MM(0) | 1 | 11218588664 | Shop at ECS Tuning | |||||
| 06 | Bearing shell 1 (blue) | 55,00MM(0) | 6 | 11218588654 | Shop at ECS Tuning | |||||
| 06 | Bearing shell 2 (green) | 55,00MM(0) | 6 | 11218588655 | Shop at ECS Tuning | |||||
| 06 | Bearing shell 3 (brown) | 55,00MM(0) | 6 | 11218588656 | Shop at ECS Tuning | |||||
| 07 | Bearing shell | 50,00MM(0) | 6 | 11249888086 | Shop at ECS Tuning | |||||
| 08 | Bearing shell | 50,00MM(0) | 6 | 11249888087 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G21 Touring LCI 330dX Crankshaft with bearing shells?
- This technical diagram illustrates the Crankshaft with bearing shells within the Engine group for the 3 Series G21 Touring LCI 330dX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Crankshaft (Part #11217100203).
- Which models use the hardware listed in this Crankshaft with bearing shells?
- The hardware and components featured in the Crankshaft with bearing shells are specific to the 3 Series G21 Touring LCI 330dX produced during 2025. These technical specifications ensure that parts like the Crankshaft (11217100203) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Crankshaft with bearing shells assembly?
- Each item in the Crankshaft with bearing shells corresponds to the numbered list below the illustration. For the 3 Series G21 Touring LCI 330dX, you can identify the Crankshaft by locating its position on the schematic, which then links to the official BMW part number 11217100203 for the Engine section.
