Lubrication system-Oil filter for BMW 3 Series G20 Sedan 330d (2020)

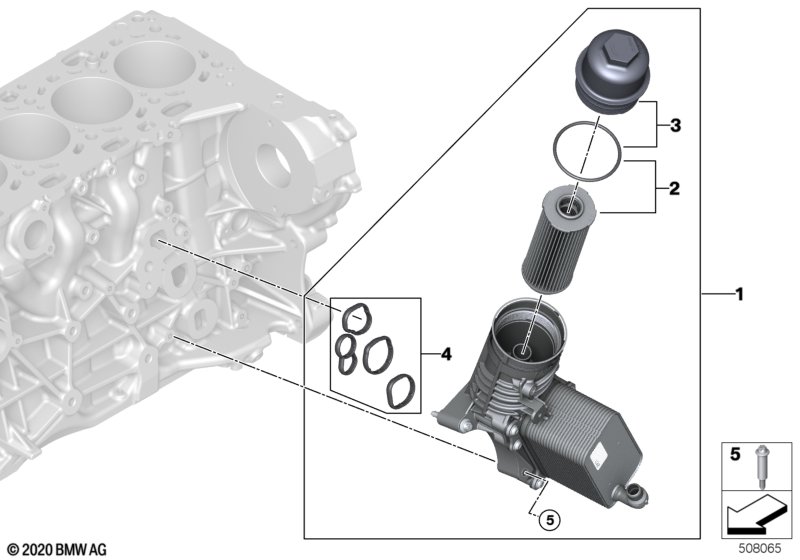

This Lubrication system-Oil filter technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil filter | 1 | 11428586674 | Shop at ECS Tuning | ||||||
| 02 | Set oil-filter element | 1 | 05/2025 | 11427826799 | Shop at ECS Tuning | |||||
| 02 | Set oil-filter element | 1 | 11425B4C845 | Shop at ECS Tuning | ||||||
| 03 | Oil filter cover | 1 | 11427926064 | Shop at ECS Tuning | ||||||
| 04 | Gasket set | 1 | 07/2021 | 11429885598 | Shop at ECS Tuning | |||||
| 04 | Kit, seals | 1 | 11427926182 | Shop at ECS Tuning | ||||||
| 05 | ASA-Bolt | M6X49,5 | 6 | 11428585734 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Sedan 330d Lubrication system-Oil filter?
- This technical diagram illustrates the Lubrication system-Oil filter within the Engine group for the 3 Series G20 Sedan 330d produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Oil filter (Part #11428586674).
- Which models use the hardware listed in this Lubrication system-Oil filter?
- The hardware and components featured in the Lubrication system-Oil filter are specific to the 3 Series G20 Sedan 330d produced during 2020. These technical specifications ensure that parts like the Oil filter (11428586674) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lubrication system-Oil filter assembly?
- Each item in the Lubrication system-Oil filter corresponds to the numbered list below the illustration. For the 3 Series G20 Sedan 330d, you can identify the Oil filter by locating its position on the schematic, which then links to the official BMW part number 11428586674 for the Engine section.
